Rightway Series 100 Model LE Electric Winch
Rightway Series 100 Model LE Electric Winch
SKU:RIG-2fc096
Powerful, reliable, and efficient electric winch for heavy lifting and pulling applications. Built to withstand tough conditions with advanced safety features.
Regular price
$5,899.99
Regular price
Sale price
$5,899.99
Unit price
per
Initiate Order
Rightway Series 100 Model LE Electric Winch
$5,899.99
Quantity: 1
Claim Your Seller Account
Rightway Series 100 Model LE Electric Winch
$5,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

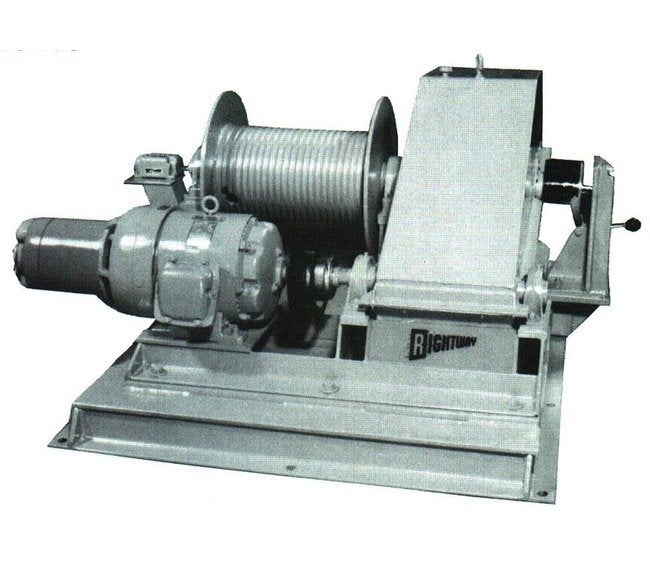

The Rightway Series 100 Model LE Electric Winch is designed for heavy-duty lifting and pulling applications, meeting the highest standards for reliability and performance. Equipped with a 15 HP motor, this winch offers a 10000 lb. full load capacity at a line speed of 40 FPM, with a 5/8-inch wire rope size and a large 14-inch drum diameter. Its innovative features include an automatic mechanical load holding brake, oil-lubricated power train, and all-weather capability, making it ideal for industrial and government use. With a focus on safety and efficiency, this winch ensures smooth operations and long-lasting durability.
Product Specifications
Specifications Capacity Full Load Running
10000
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton
Specifications Drum 6 Layers
966 ft.
Specifications Drum Diameter
14 inches
Specifications Line Speed
40 FPM
Specifications Motor
15 HP
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Net Weight
1550 lbs.
Specifications Optional Equipment
Grooved drums | Free spooling drums | Drum cable pressure roller for level winding assistance also prevents wire rope from uncoiling on drum when slack line occurs | Overspeed automatic load holding drum brake and electric shut-off | Torque limiter, mechanical (automatic resets when overload removed) | Rotary Geared Limit Switch - NEMA4 | Electric Motor Brake - (recommended for all hoisting applications)
Specifications Winch Height
27 inches
Specifications Winch Length
44 inches
Specifications Winch Width
35 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Specifications Wire Rope Capacity 3 Layers
475 ft.
Specifications Wire Rope Size
5/8 inches
Standard Features 0
Automatic mechanical load holding brake. Brake does not create heatTotal power train enclosed oil lubricated High torque crane and hoist duty motor starting capacity is minimum two (2) times running High efficiency power transmission lift more or faster with less horsepower required All weather use is ideal for model LE Large diameter drums increases wire rope life All steel construction minimum 5 to 1 structural safety factor
