Rightway Series 200 Model GE Electric Winch

Rightway Series 200 Model GE Electric Winch

RIG-9d8c9e

Powerful and reliable Series 200 Model GE Electric Winch for heavy-duty lifting and pulling applications.

$8,799.99
$8,799.99
Sale

Initiate Order

Rightway Series 200 Model GE Electric Winch

Rightway Series 200 Model GE Electric Winch

$8,799.99

Quantity: 1

Claim Your Seller Account

Rightway Series 200 Model GE Electric Winch

Rightway Series 200 Model GE Electric Winch

$8,799.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

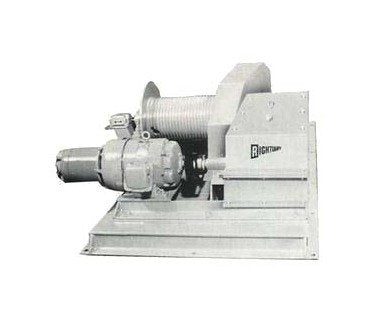

The Rightway Series 200 Model GE Electric Winch is a powerful and durable solution designed for heavy-duty lifting and pulling tasks. With a high torque crane and hoist duty motor, this winch offers a minimum of two times the running capacity, ensuring efficient performance. It features a total power train enclosed oil lubrication system, enhancing its durability and reliability in all weather conditions. The large diameter drums increase wire rope life, and the all-steel construction provides a minimum 5 to 1 structural safety factor. Ideal for electrical braking, lifting, and pulling applications, this winch is equipped with various safety features like an overspeed automatic load holding drum brake and torque limiter. Available in different mounting options for versatile use.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Specifications Capacity Full Load Running
25000
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton
Specifications Drum 6 Layers
2000 ft.
Specifications Drum Diameter
24 inches
Specifications Line Speed
70 FPM
Specifications Motor
60 HP
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Net Weight
8500 lbs.
Specifications Optional Equipment
Grooved drums | Free spooling drums | Drum cable pressure roller for level winding assistance also prevents wire rope from uncoiling on drum when slack line occurs | Overspeed automatic load holding drum brake and electric shut-off | Torque limiter, mechanical (automatic resets when overload removed) | Rotary Geared Limit Switch - NEMA4 | Electric Motor Brake - (recommended for all hoisting applications)
Specifications Winch Height
35 inches
Specifications Winch Length
92 inches
Specifications Winch Width
72 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Specifications Wire Rope Capacity 3 Layers
1000 ft.
Specifications Wire Rope Size
1 inches
Standard Features 0

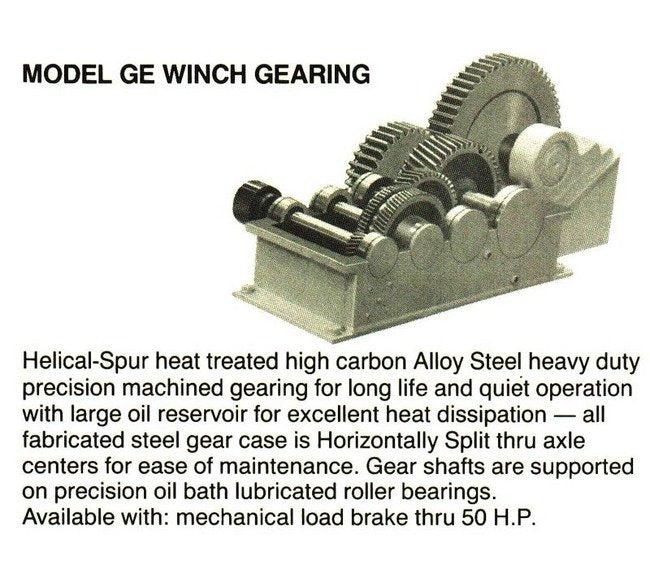

Total power train enclosed oil lubricatedHigh torque crane and hoist duty motor starting capacity is minimum two (2) times running High efficiency power transmission lift more or faster with less horsepower required All weather use is ideal for model GE Large diameter drums increases wire rope life All steel construction minimum 5 to 1 structural safety factor
