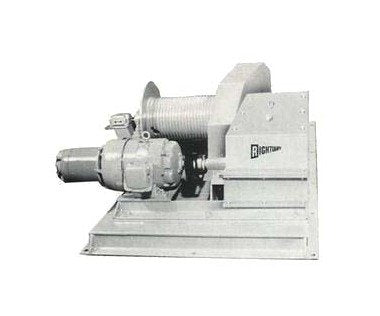

Rightway Series 200 Model GE Electric Winches
Rightway Series 200 Model GE Electric Winches
SKU:RIG-697d65
High-performance electric winches with 40 HP motor, 25000 lbs. capacity, and advanced safety features for crane and hoist applications.
Regular price
$7,999.99
Regular price
Sale price
$7,999.99
Unit price
per
Initiate Order
Rightway Series 200 Model GE Electric Winches
$7,999.99
Quantity: 1
Claim Your Seller Account
Rightway Series 200 Model GE Electric Winches
$7,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Rightway Series 200 Model GE Electric Winches are engineered for high performance in crane and hoist applications. With a robust 40 HP motor and a capacity of 25000 lbs., these winches provide high torque and efficiency. Featuring a 5 to 1 structural safety factor, large diameter drums for extended wire rope life, and all-steel construction, they ensure durability and reliability in all weather conditions. Equipped with advanced safety features like electric shut-off, overspeed automatic load holding brake, and torque limiter, these winches meet the demanding standards of government and institutional buyers.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Capacity Full Load Running
25000
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton
Specifications Drum 6 Layers
1000 ft.
Specifications Drum Diameter
18 inches
Specifications Line Speed
48 FPM
Specifications Motor
40 HP
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Net Weight
7000 lbs.
Specifications Optional Equipment
Grooved drums | Free spooling drums | Drum cable pressure roller for level winding assistance also prevents wire rope from uncoiling on drum when slack line occurs | Overspeed automatic load holding drum brake and electric shut-off | Torque limiter, mechanical (automatic resets when overload removed) | Rotary Geared Limit Switch - NEMA4 | Electric Motor Brake - (recommended for all hoisting applications)
Specifications Winch Height
31 inches
Specifications Winch Length
73 inches
Specifications Winch Width
61 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Specifications Wire Rope Capacity 3 Layers
500 ft.
Specifications Wire Rope Size
1 inches
Standard Features 0

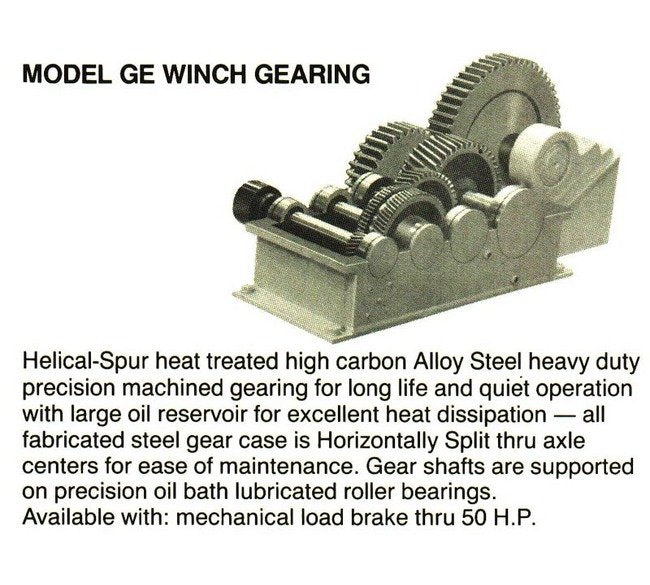

Total power train enclosed oil lubricatedHigh torque crane and hoist duty motor starting capacity is minimum two (2) times running High efficiency power transmission lift more or faster with less horsepower required All weather use is ideal for model GE Large diameter drums increases wire rope life All steel construction minimum 5 to 1 structural safety factor
