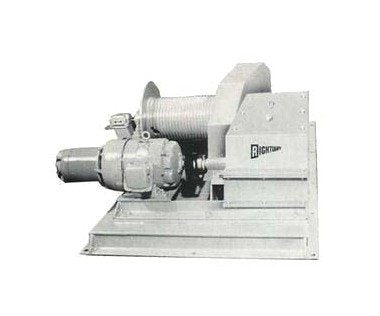

The Rightway Series 200 Model GE Electric Winches are engineered for superior performance in lifting and pulling applications. With a robust 40 HP motor, these winches boast a capacity of 10,000 lbs at 120 FPM line speed. The all-steel construction ensures a 5 to 1 structural safety factor, ideal for heavy-duty industrial use. Featuring optional equipment like grooved drums and torque limiters, these winches provide precision control and safety mechanisms for reliable operation. Suitable for all weather conditions, these winches are designed for efficiency and durability, making them a top choice for institutional buyers seeking quality and compliance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Capacity Full Load Running
10000
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton
Specifications Drum 6 Layers
1500 ft.
Specifications Drum Diameter
18 inches
Specifications Line Speed
120 FPM
Specifications Motor
40 HP
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Net Weight
6900 lbs.
Specifications Optional Equipment
Grooved drums | Free spooling drums | Drum cable pressure roller for level winding assistance also prevents wire rope from uncoiling on drum when slack line occurs | Overspeed automatic load holding drum brake and electric shut-off | Torque limiter, mechanical (automatic resets when overload removed) | Rotary Geared Limit Switch - NEMA4 | Electric Motor Brake - (recommended for all hoisting applications)
Specifications Winch Height
31 inches
Specifications Winch Length
73 inches
Specifications Winch Width
61 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Specifications Wire Rope Capacity 3 Layers
750 ft.
Specifications Wire Rope Size
5/8 inches
Standard Features 0

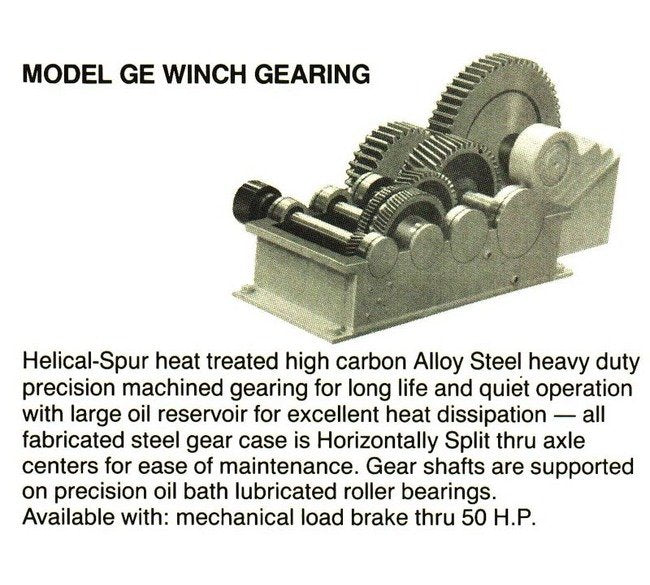

Total power train enclosed oil lubricatedHigh torque crane and hoist duty motor starting capacity is minimum two (2) times running High efficiency power transmission lift more or faster with less horsepower required All weather use is ideal for model GE Large diameter drums increases wire rope life All steel construction minimum 5 to 1 structural safety factor
