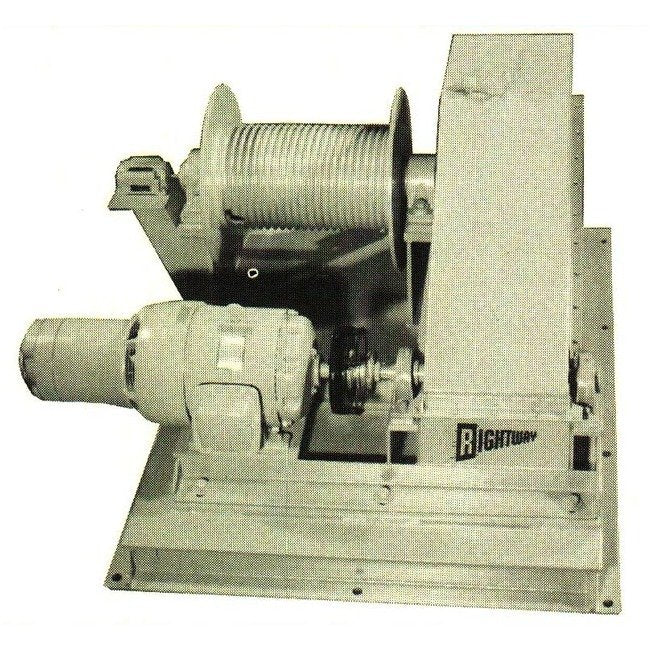

The Rightway Series 50 Model PE Electric Winches are engineered for all-weather use with a robust all-steel construction boasting a minimum 5 to 1 structural safety factor. Equipped with a high-efficiency power transmission system, these winches deliver exceptional performance with lower horsepower requirements. The automatic mechanical load holding brake ensures safe and secure operations without generating excess heat. Featuring a high torque crane and hoist duty motor, large diameter drums, and various optional equipment for enhanced functionality, these winches are designed for lifting, pulling, and precise control in diverse operational environments.
Product Specifications
Specifications Capacity Full Load Running
4000
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton
Specifications Drum Diameter
8 inches
Specifications Full Drum
500 ft.
Specifications Line Speed
35 FPM
Specifications Motor
5 HP
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Net Weight
475 lbs.
Specifications Optional Equipment
Grooved drums | Free spooling drums | Drum cable pressure roller for level winding assistance also prevents wire rope from uncoiling on drum when slack line occurs | Overspeed automatic load holding drum brake and electric shut-off | Torque limiter, mechanical (automatic resets when overload removed) | Rotary geared limit switch, NEMA 4 | Electric Motor Brake (recommended for all hoisting applications)
Specifications Winch Height
17 inches
Specifications Winch Length
24 inches
Specifications Winch Width
26 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Specifications Wire Rope Capacity 3 Layers
235 ft.
Specifications Wire Rope Size
7/16 inches
Standard Features 0
All weather use is ideal for model PE All steel construction minimum 5 to 1 structural safety factorTotal power train enclosed oil lubricatedAutomatic mechanical load holding brake. Brake does not create heat High efficiency power transmission lift more or faster with less horsepower required High torque crane and hoist duty motor starting capacity is minimum two (2) times running Large diameter drums increases wire rope life
