Rightway Series 50 PE Electric Winch
Rightway Series 50 PE Electric Winch
SKU:RIG-a8af08
Powerful, efficient, and durable electric winch designed for crane and hoist applications. Ideal for all-weather use.
Regular price
$3,999.99
Regular price
Sale price
$3,999.99
Unit price
per
Initiate Order
Rightway Series 50 PE Electric Winch
$3,999.99
Quantity: 1
Claim Your Seller Account
Rightway Series 50 PE Electric Winch
$3,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

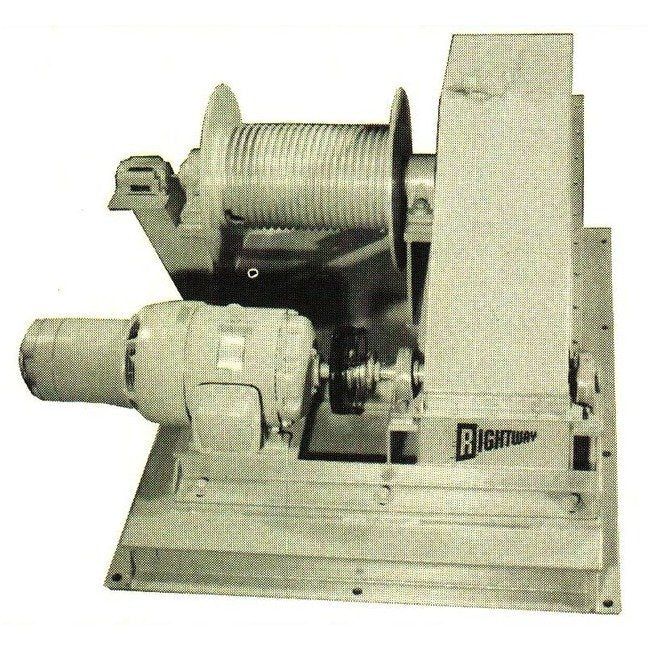

The Series 50 Model PE Electric Winch from Rightway Winches is designed for all-weather use, featuring an all-steel construction with a minimum 5 to 1 structural safety factor. With a high-efficiency power transmission system, this winch offers increased lifting capacity while requiring less horsepower. Equipped with a powerful 5 HP motor, automatic mechanical load holding brake, and large diameter drums to enhance wire rope life, this winch is ideal for crane and hoist duty applications. Its range of optional equipment, including grooved drums and torque limiter, ensures versatile functionality for lifting, pulling, and secure load holding. Meet your institutional procurement requirements with the Series 50 PE Electric Winch.
Product Specifications
Specifications Capacity Full Load Running
6000
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton
Specifications Drum Diameter
8 inches
Specifications Full Drum
570 ft.
Specifications Line Speed
25 FPM
Specifications Motor
5 HP
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Net Weight
565 lbs.
Specifications Optional Equipment
Grooved drums | Free spooling drums | Drum cable pressure roller for level winding assistance also prevents wire rope from uncoiling on drum when slack line occurs | Overspeed automatic load holding drum brake and electric shut-off | Torque limiter, mechanical (automatic resets when overload removed) | Rotary geared limit switch, NEMA 4 | Electric Motor Brake (recommended for all hoisting applications)
Specifications Winch Height
20 inches
Specifications Winch Length
27 inches
Specifications Winch Width
28 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Specifications Wire Rope Capacity 3 Layers
225 ft.
Specifications Wire Rope Size
1/2 inches
Standard Features 0
All weather use is ideal for model PE All steel construction minimum 5 to 1 structural safety factorTotal power train enclosed oil lubricatedAutomatic mechanical load holding brake. Brake does not create heat High efficiency power transmission lift more or faster with less horsepower required High torque crane and hoist duty motor starting capacity is minimum two (2) times running Large diameter drums increases wire rope life
