Rightway Series 50 PE Electric Winch
Rightway Series 50 PE Electric Winch
SKU:RIG-912335
Reliable all-weather electric winch for lifting and pulling, featuring steel construction, high torque motor, and advanced safety mechanisms.
Regular price
$2,799.99
Regular price
Sale price
$2,799.99
Unit price
per
Initiate Order
Rightway Series 50 PE Electric Winch
$2,799.99
Quantity: 1
Claim Your Seller Account
Rightway Series 50 PE Electric Winch
$2,799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

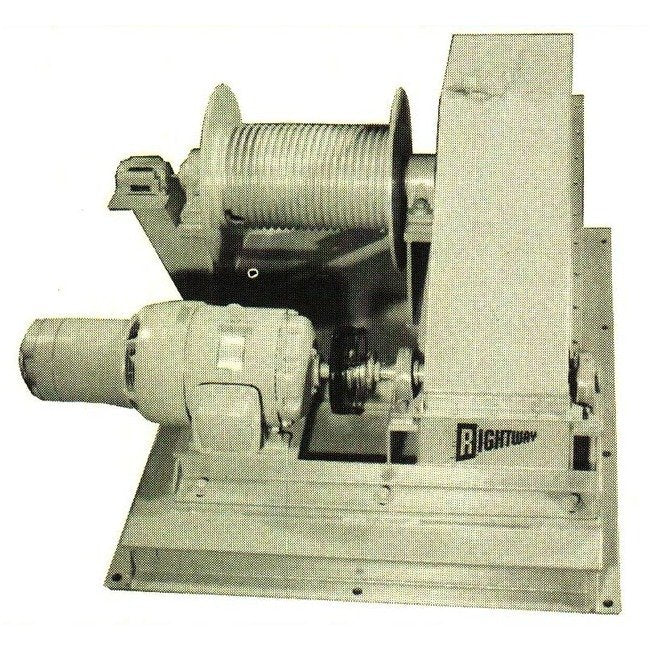

The Rightway Series 50 Model PE Electric Winch is designed for all-weather use, constructed with steel for a 5 to 1 structural safety factor. Featuring an enclosed oil-lubricated power train, it ensures high efficiency power transmission for lifting heavier loads with minimal horsepower. Equipped with a mechanical load holding brake that does not generate heat, this winch includes a high torque crane and hoist duty motor for increased durability. With features like large diameter drums enhancing wire rope life, this winch offers reliability and performance ideal for lifting and pulling applications.
Product Specifications
Specifications Capacity Full Load Running
7500
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton
Specifications Drum Diameter
8 inches
Specifications Full Drum
350 ft.
Specifications Line Speed
20 FPM
Specifications Motor
5 HP
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Net Weight
615 lbs.
Specifications Optional Equipment
Grooved drums | Free spooling drums | Drum cable pressure roller for level winding assistance also prevents wire rope from uncoiling on drum when slack line occurs | Overspeed automatic load holding drum brake and electric shut-off | Torque limiter, mechanical (automatic resets when overload removed) | Rotary geared limit switch, NEMA 4 | Electric Motor Brake (recommended for all hoisting applications)
Specifications Winch Height
20 inches
Specifications Winch Length
29 inches
Specifications Winch Width
32 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Specifications Wire Rope Capacity 3 Layers
200 ft.
Specifications Wire Rope Size
9/16 inches
Standard Features 0
All weather use is ideal for model PE All steel construction minimum 5 to 1 structural safety factorTotal power train enclosed oil lubricatedAutomatic mechanical load holding brake. Brake does not create heat High efficiency power transmission lift more or faster with less horsepower required High torque crane and hoist duty motor starting capacity is minimum two (2) times running Large diameter drums increases wire rope life
