Rightway SVS 7500 lbs. Single Base Mounted Vertical Sheave Assemblies
Rightway SVS 7500 lbs. Single Base Mounted Vertical Sheave Assemblies
SKU:RIG-8bff59
Reliable and precise 7500 lbs. Vertical Sheave Assemblies for lifting and pulling operations.
Regular price
$549.99
Regular price
Sale price
$549.99
Unit price
per
Initiate Order
Rightway SVS 7500 lbs. Single Base Mounted Vertical Sheave Assemblies
$549.99
Quantity: 1
Claim Your Seller Account
Rightway SVS 7500 lbs. Single Base Mounted Vertical Sheave Assemblies
$549.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Rightway SVS Single Base Mounted Vertical Sheave Assemblies are precision-engineered for reliable lifting and pulling operations, with a capacity of 7500 lbs. These assemblies feature a durable construction with a 9/16 inches wire rope diameter and compact design for seamless integration. Equipped with essential controls like a lever drum mounted at the winch and magnetic remote pushbutton, these sheave assemblies ensure ease of operation and enhanced safety. Ideal for applications requiring an electrical brake, these assemblies meet stringent industry standards for quality and performance.
Product Specifications
Specifications Capacity
7500 lbs.
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton

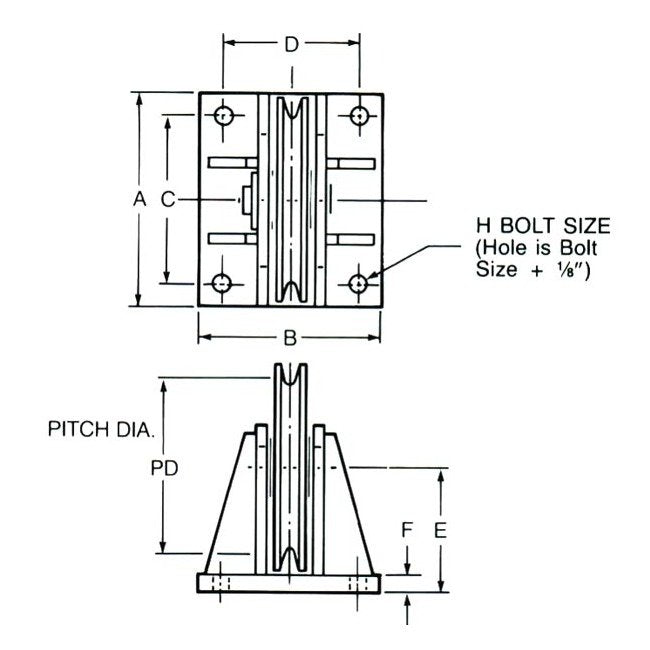

Specifications Dimension A
13 3/4 inches
Specifications Dimension B
10 1/2 inches
Specifications Dimension C
11 inches
Specifications Dimension D
8 inches
Specifications Dimension E
7 3/8 inches
Specifications Dimension F
7/8 inches
Specifications Dimension H
1 1/8 inches
Specifications Model
SVS
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Pitch Diameter
11 1/4 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Specifications Wire Rope Diameter
9/16 inches
