Rightway VC Vertical Capstans
Rightway VC Vertical Capstans
SKU:RIG-2c6b83
Powerful and reliable Rightway VC Vertical Capstans for all-weather use, with high torque motor and heavy-duty construction.
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
Rightway VC Vertical Capstans
$1,899.99
Quantity: 1
Claim Your Seller Account
Rightway VC Vertical Capstans
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

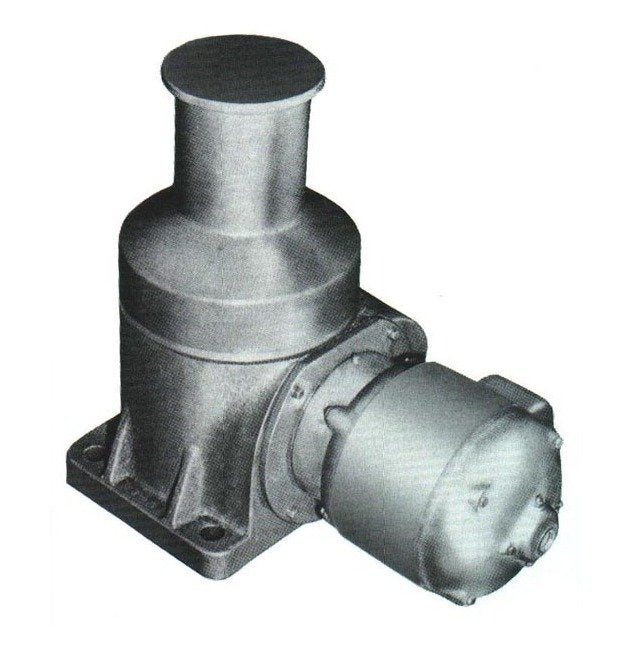

The Rightway VC Vertical Capstans are designed for optimal performance in all weather conditions, making them ideal for a wide range of applications. With a fully enclosed power train featuring oil bath lubrication and an all-steel construction with a minimum 5 to 1 structural safety factor, these capstans ensure durability and reliability. The totally enclosed motor provides high starting torque for heavy-duty operations, while the solid construction guarantees a long service life. With a pull capacity of 10,000 lbs (starting) and 5,000 lbs (running), line speed of 20 FPM, and a net weight of 600 lbs, these capstans excel in performance and efficiency.
Product Specifications

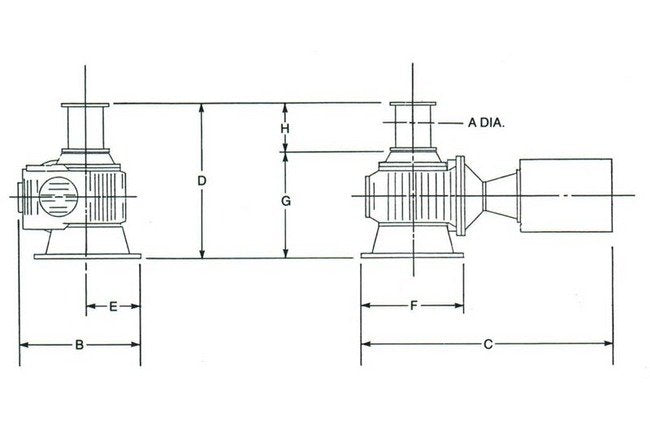

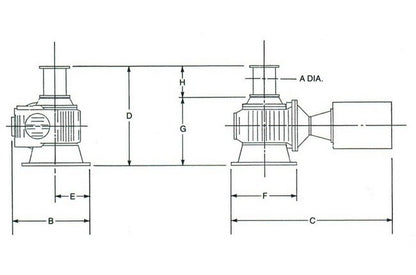

Specifications Dimension A
6 inches
Specifications Dimension B
20 1/2 inches
Specifications Dimension C
41 inches
Specifications Dimension D
22 1/2 inches
Specifications Dimension E
8 1/2 inches
Specifications Dimension F
17 inches
Specifications Dimension G
15 1/2 inches
Specifications Dimension H
1 inches
Specifications Line Speed
20 FPM
Specifications Net Weight
600 lbs.
Specifications Pull Capacity Running
5000
Specifications Pull Capacity Starting
10000
Standard Features 0
All weather use is ideal for rightway capstans Fully enclosed power train oilbath lubrication All steel construction minimum 5 to 1 structural safety factor Totally enclosed motor high starting torque Heavy duty design solid construction for long life
