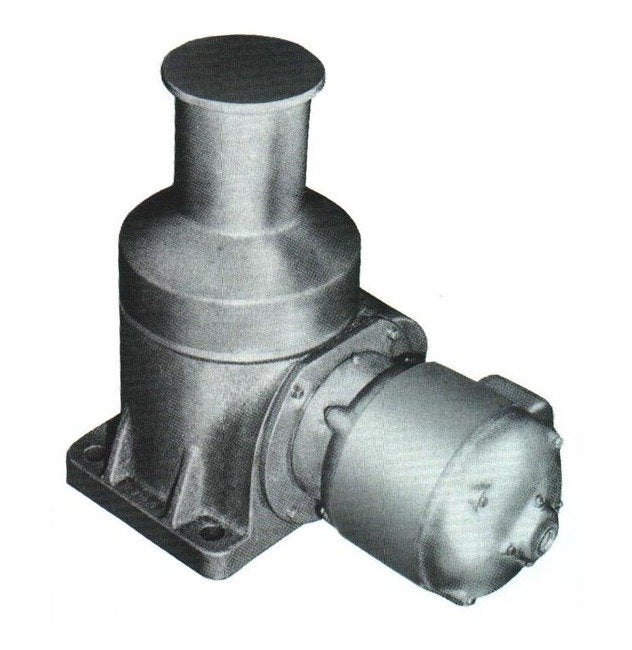

Rightway VC Vertical Capstans - 12000/6000 Pull Capacity
Rightway VC Vertical Capstans - 12000/6000 Pull Capacity
SKU:RIG-608bbd
Reliable Rightway VC Vertical Capstans - Built for durability and high performance in all conditions. Pull Capacity: 12000/6000 lbs. Line Speed: 15 FPM
Regular price
$2,899.99
Regular price
Sale price
$2,899.99
Unit price
per
Initiate Order
Rightway VC Vertical Capstans - 12000/6000 Pull Capacity
$2,899.99
Quantity: 1
Claim Your Seller Account
Rightway VC Vertical Capstans - 12000/6000 Pull Capacity
$2,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Rightway VC Vertical Capstans are designed for durability and high performance in all weather conditions. With a pull capacity of 12000 lbs. starting and 6000 lbs. running, these capstans feature fully enclosed power train oilbath lubrication for optimal maintenance, and a heavy-duty all-steel construction with a 5 to 1 structural safety factor. The totally enclosed motor provides high starting torque, ensuring reliable operation, and the solid construction guarantees a long service life. Measuring at 8" x 20 1/2" x 43" and weighing 675 lbs., these capstans deliver a line speed of 15 FPM, making them ideal for various winching applications.

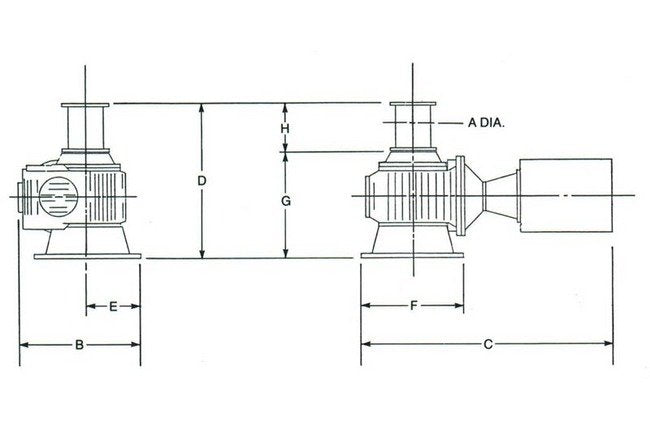

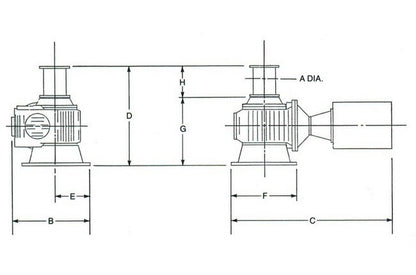

Product Specifications
Specifications Dimension A
8 inches
Specifications Dimension B
20 1/2 inches
Specifications Dimension C
43 inches
Specifications Dimension D
22 1/2 inches
Specifications Dimension E
8 1/2 inches
Specifications Dimension F
17 inches
Specifications Dimension G
15 1/2 inches
Specifications Dimension H
7 inches
Specifications Line Speed
15 FPM
Specifications Net Weight
675 lbs.
Specifications Pull Capacity Running
6000
Specifications Pull Capacity Starting
12000
Standard Features 0
All weather use is ideal for rightway capstans Fully enclosed power train oilbath lubrication All steel construction minimum 5 to 1 structural safety factor Totally enclosed motor high starting torque Heavy duty design solid construction for long life
