Rightway VC Vertical Capstans - Heavy Duty Winching Solutions
Rightway VC Vertical Capstans - Heavy Duty Winching Solutions
SKU:RIG-b1045f
Weatherproof and robust, the Rightway VC Vertical Capstans are heavy-duty winching solutions.
Regular price
$1,299.99
Regular price
Sale price
$1,299.99
Unit price
per
Initiate Order
Rightway VC Vertical Capstans - Heavy Duty Winching Solutions
$1,299.99
Quantity: 1
Claim Your Seller Account
Rightway VC Vertical Capstans - Heavy Duty Winching Solutions
$1,299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

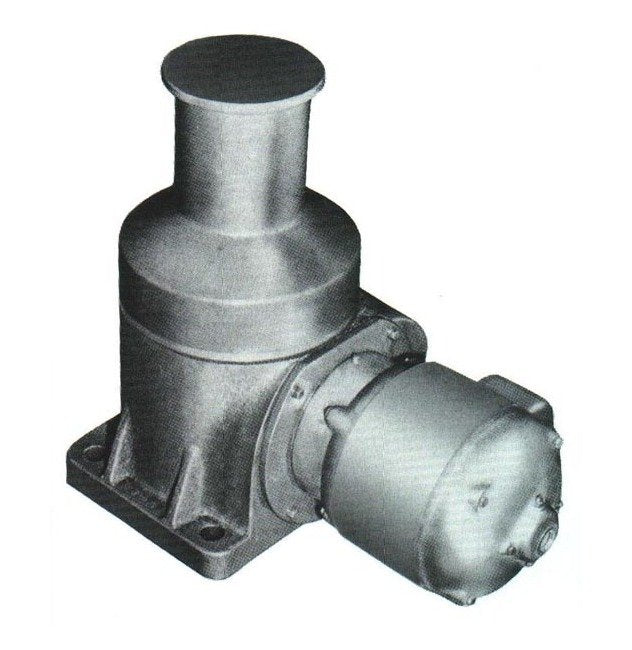

The Rightway VC Vertical Capstans are expertly designed for all-weather use, featuring a fully enclosed power train with oil bath lubrication for optimal performance and longevity. Built with a robust all-steel construction and a minimum 5 to 1 structural safety factor, these capstans ensure maximum safety during operations. Equipped with a totally enclosed motor delivering high starting torque, these capstans boast a heavy-duty design for solid construction, guaranteeing a long service life. With a pull capacity of 4000 lbs (Starting) and 2000 lbs (Running), a line speed of 25 FPM, and compact dimensions, these capstans are ideal for various winching applications, making them a reliable choice for both consumer and institutional buyers.
Product Specifications

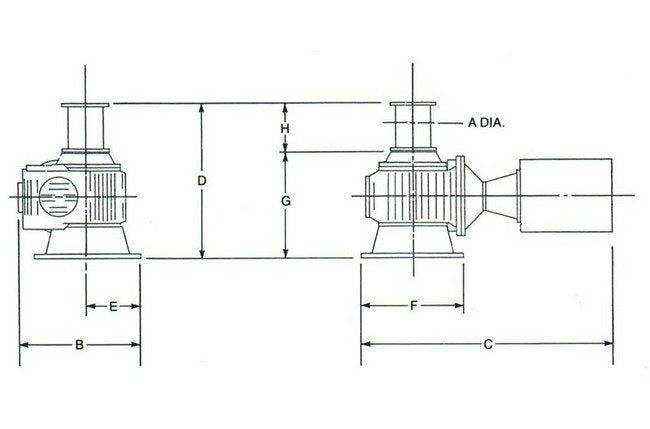

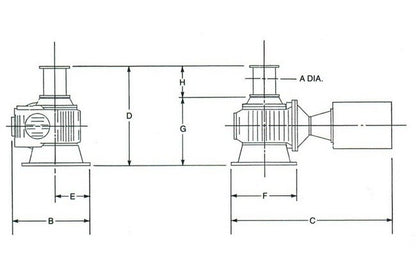

Specifications Dimension A
5 inches
Specifications Dimension B
17 inches
Specifications Dimension C
30 inches
Specifications Dimension D
17 inches
Specifications Dimension E
9 inches
Specifications Dimension F
9 inches
Specifications Dimension G
10 inches
Specifications Dimension H
7 inches
Specifications Line Speed
25 FPM
Specifications Net Weight
220 lbs.
Specifications Pull Capacity Running
2000
Specifications Pull Capacity Starting
4000
Standard Features 0
All weather use is ideal for rightway capstans Fully enclosed power train oilbath lubrication All steel construction minimum 5 to 1 structural safety factor Totally enclosed motor high starting torque Heavy duty design solid construction for long life
