Rightway Winches E2CP Car Puller
Rightway Winches E2CP Car Puller
SKU:RIG-71354c
Powerful and durable car puller for precise pulling, stopping, and spotting needs. Ensures maximum durability and safety in all weather conditions.
Regular price
$4,999.99
Regular price
Sale price
$4,999.99
Unit price
per
Initiate Order
Rightway Winches E2CP Car Puller
$4,999.99
Quantity: 1
Claim Your Seller Account
Rightway Winches E2CP Car Puller
$4,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

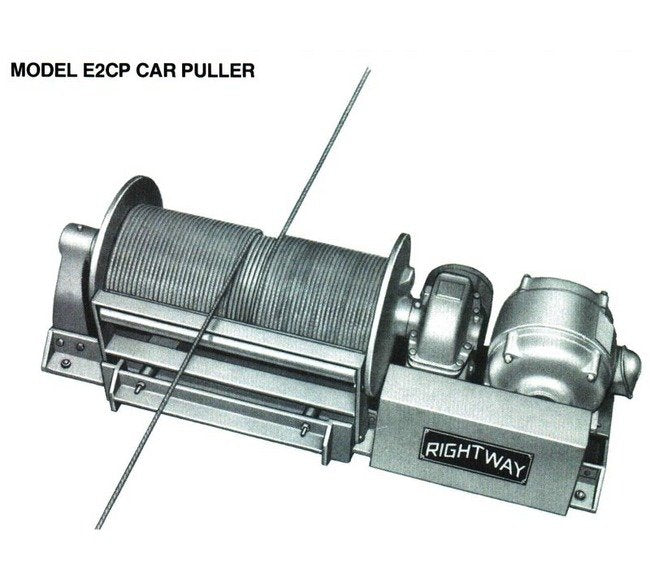

The Rightway Winches Model E2CP Car Puller is a high-performance solution designed for precise pulling, stopping, and spotting needs. Featuring a totally enclosed motor with high torque hoist duty, precision gearing for smooth operation in oilbath lubrication, and all-weather durability, this rugged car puller ensures reliability in any condition. With large diameter drums to increase wire rope life, pulling distances of 50', 75', and 150' in each direction, and the ability for rope leads from both sides or a single lead from the opposite side of the drum, this steel drum and base construction with a minimum 5 to 1 structural safety factor guarantees maximum durability and safety.
Product Specifications
Specifications Capacity Full Load Running
4000
Specifications Capacity Full Load Starting
8000
Specifications Drum Diameter
8 5/8 inches
Specifications Line Speed
50 FPM
Specifications Model
E2CP Car Puller
Specifications Motor
10 HP
Specifications Net Weight
1050 lbs.
Specifications Optional Equipment
Electric Motor Brake - for precision spotting | Rotary travel limit switch | Controls to suit application | Cable Drum Pressure Roller - keeps rope in grooves under slack line conditions | Torque Limiter Mechanical Clutch - automatically resets when excessive pull is released
Specifications Winch Height
18 inches
Specifications Winch Length
56 inches
Specifications Winch Width
21 inches
Specifications Wire Rope Size
7/16 inches
Standard Features 0
Totally enclosed motor high torque hoist duty Precision gearing operating in oilbath lubrication All weather use is ideal for rugged model E2CP controlled pulling, stopping and spotting Large diameter drums increases wire rope lifePulling distance 50', 75', 150' each direction Rope leads both from one side or single lead from opposite side of drum All steel drum and base for maximum durability minimum 5 to 1 structural safety factor.
