Rightway Winches E2CP Car Puller
Rightway Winches E2CP Car Puller
SKU:RIG-7ede07
Heavy-duty E2CP Car Puller for precise, controlled pulling and stopping in all-weather conditions. Optional features for enhanced precision and control.
Regular price
$6,499.99
Regular price
Sale price
$6,499.99
Unit price
per
Initiate Order
Rightway Winches E2CP Car Puller
$6,499.99
Quantity: 1
Claim Your Seller Account
Rightway Winches E2CP Car Puller
$6,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

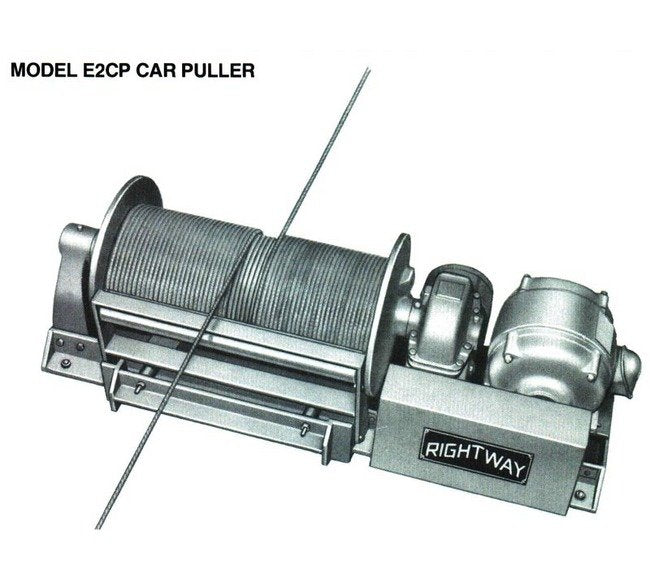

The Rightway Winches E2CP Car Puller is a heavy-duty solution designed for controlled pulling, stopping, and spotting. With a 7 1/2 HP motor and high torque hoist duty gearing, this car puller operates in oilbath lubrication for all-weather use. The large diameter drums increase wire rope life, offering pulling distances of 50', 75', and 150' in each direction. Featuring precision engineering and a steel drum/base, it ensures maximum durability with a minimum 5 to 1 structural safety factor. Optional equipment like the Electric Motor Brake and Rotary travel limit switch enhance precision and control, making it ideal for industrial applications.
Product Specifications
Specifications Capacity Full Load Running
6000
Specifications Capacity Full Load Starting
12000
Specifications Drum Diameter
10 3/4 inches
Specifications Line Speed
20 FPM
Specifications Model
E2CP Car Puller
Specifications Motor
7 1/2 HP
Specifications Net Weight
1250 lbs.
Specifications Optional Equipment
Electric Motor Brake - for precision spotting | Rotary travel limit switch | Controls to suit application | Cable Drum Pressure Roller - keeps rope in grooves under slack line conditions | Torque Limiter Mechanical Clutch - automatically resets when excessive pull is released
Specifications Winch Height
21 inches
Specifications Winch Length
60 inches
Specifications Winch Width
24 inches
Specifications Wire Rope Size
1/2 inches
Standard Features 0
Totally enclosed motor high torque hoist duty Precision gearing operating in oilbath lubrication All weather use is ideal for rugged model E2CP controlled pulling, stopping and spotting Large diameter drums increases wire rope lifePulling distance 50', 75', 150' each direction Rope leads both from one side or single lead from opposite side of drum All steel drum and base for maximum durability minimum 5 to 1 structural safety factor.
