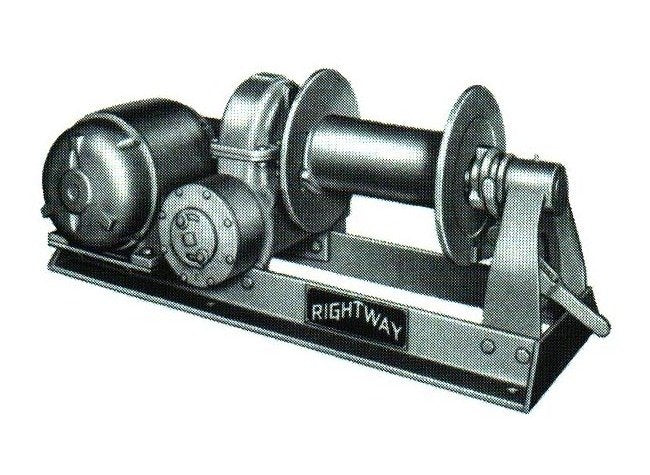

Rightway Winches Model E2 Heavy Duty Electric Winch
Rightway Winches Model E2 Heavy Duty Electric Winch
SKU:RIG-c8908e
Reliable and robust, the Rightway Model E2 Winch is a heavy-duty powerhouse for lifting and pulling operations.
Regular price
$4,999.99
Regular price
Sale price
$4,999.99
Unit price
per
Initiate Order
Rightway Winches Model E2 Heavy Duty Electric Winch
$4,999.99
Quantity: 1
Claim Your Seller Account
Rightway Winches Model E2 Heavy Duty Electric Winch
$4,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Rightway Winches Model E2 Electric Heavy Duty Winch is a powerhouse designed for reliable lifting and pulling operations. With a running capacity of 15000 lbs and a 15 HP motor, this winch is ideal for heavy-duty tasks. Featuring a self-locking worm gear reduction with oil bath lubrication, all-weather usability, and a safety brake, this winch ensures secure operations in diverse conditions. The steel fabricated winch base provides maximum durability with a 5 to 1 structural safety factor, making it a robust choice for industrial applications.
Product Specifications
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton
Specifications Drum 3 Layers
250 ft.
Specifications Electrical Current
230/460-3-60
Specifications Full Drum
400 ft.
Specifications Line Speed
15 FPM
Specifications Motor
15 HP
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Net Weight
1970 lbs.
Specifications Optional Equipment
Controls to suit application | Electric Motor Brake (recommended for all hoisting applications) | Mechanical Torque Limiter | Cable Drum Pressure Roller - assists multiple layer reeving, keeps wire taut on drum when free spooling
Specifications Running Capacity Lbs
15000
Specifications Winch Height
29 inches
Specifications Winch Length
63 inches
Specifications Winch Width
25 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Specifications Wire Rope Size
3/4 inches
Standard Features 0
Free spooling drum has adjustable dragSelf-locking worm gear reduction - oilbath lubricationAll weather use is ideal for rugged model E2 and A2 winchesSafety brake automatic mechanical load typeAll steel fabricated winch base for maximum durability minimum 5 to 1 structural safety factor
