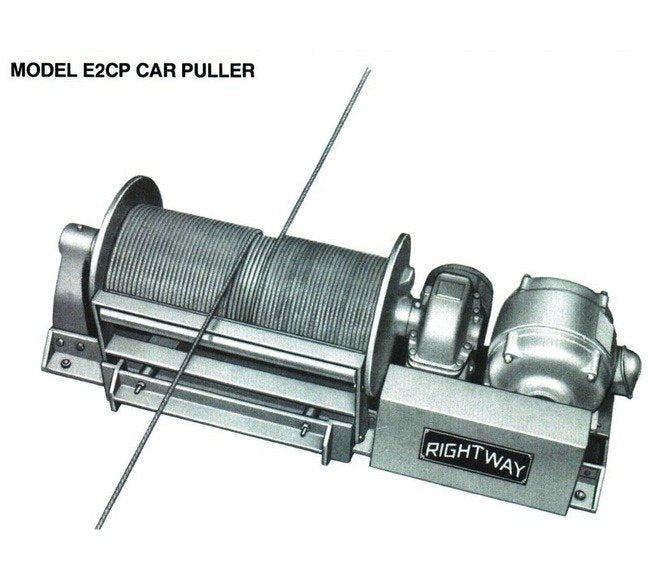

Rightway Winches Model E2CP Car Puller
Rightway Winches Model E2CP Car Puller
SKU:RIG-32d239
High-performance Model E2CP Car Puller for precise and rugged pulling tasks. 4000 lbs. load capacity, 5 HP motor, and durable construction.
Regular price
$2,899.99
Regular price
Sale price
$2,899.99
Unit price
per
Initiate Order
Rightway Winches Model E2CP Car Puller
$2,899.99
Quantity: 1
Claim Your Seller Account
Rightway Winches Model E2CP Car Puller
$2,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Rightway Winches Model E2CP Car Puller is a high-performance solution designed for controlled pulling, stopping, and spotting tasks. With a capacity of 4000 lbs. at full load starting and 2000 lbs. at full load running, this car puller features a 5 HP motor and operates at a line speed of 50 FPM. The precision gearing in oilbath lubrication ensures smooth and efficient operation in all weather conditions. Its large diameter drum increases wire rope life, while the all-steel drum and base provide maximum durability with a minimum 5 to 1 structural safety factor. With optional equipment such as an electric motor brake, rotary travel limit switch, and torque limiter mechanical clutch, this car puller offers precision and reliability.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Capacity Full Load Running
2000
Specifications Capacity Full Load Starting
4000
Specifications Drum Diameter
6 5/8 inches
Specifications Line Speed
50 FPM
Specifications Model
E2CP Car Puller
Specifications Motor
5 HP
Specifications Net Weight
620 lbs.
Specifications Optional Equipment
Electric Motor Brake - for precision spotting | Rotary travel limit switch | Controls to suit application | Cable Drum Pressure Roller - keeps rope in grooves under slack line conditions | Torque Limiter Mechanical Clutch - automatically resets when excessive pull is released
Specifications Winch Height
16 inches
Specifications Winch Length
52 inches
Specifications Winch Width
20 inches
Specifications Wire Rope Size
5/16 inches
Standard Features 0
Totally enclosed motor high torque hoist duty Precision gearing operating in oilbath lubrication All weather use is ideal for rugged model E2CP controlled pulling, stopping and spotting Large diameter drums increases wire rope lifePulling distance 50', 75', 150' each direction Rope leads both from one side or single lead from opposite side of drum All steel drum and base for maximum durability minimum 5 to 1 structural safety factor.
