Rightway Winches Model E2CP Car Puller
Rightway Winches Model E2CP Car Puller
SKU:RIG-d369c3
Heavy-duty Model E2CP Car Puller with high torque hoist duty, precise gearing, and 20 HP motor for rugged use.
Regular price
$7,899.99
Regular price
Sale price
$7,899.99
Unit price
per
Initiate Order
Rightway Winches Model E2CP Car Puller
$7,899.99
Quantity: 1
Claim Your Seller Account
Rightway Winches Model E2CP Car Puller
$7,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

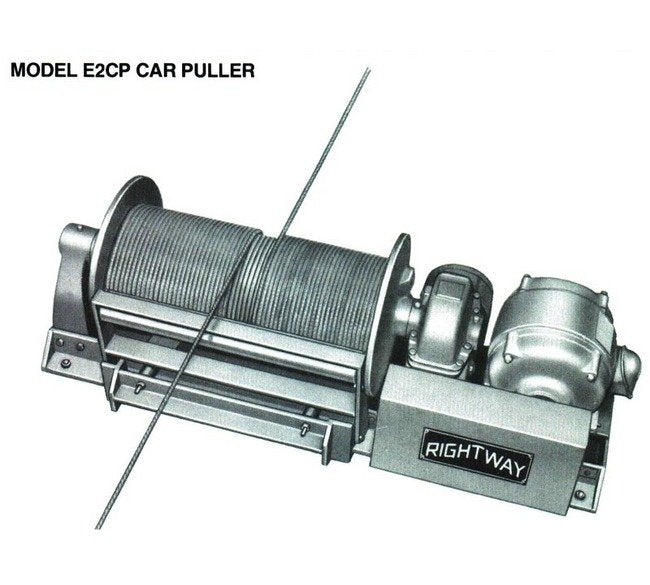

The Rightway Winches Model E2CP Car Puller is engineered for high torque hoist duty, featuring precision gearing with oilbath lubrication for all-weather rugged use. With a capacity of 24,000 lbs. (starting) and 12,000 lbs. (running), this puller offers controlled pulling, stopping, and spotting capabilities. Its large diameter drums enhance wire rope life, and the steel drum and base ensure maximum durability with a 5 to 1 structural safety factor. The motor boasts 20 HP power for efficient performance, making it ideal for heavy-duty applications.
Product Specifications
Specifications Capacity Full Load Running
12000
Specifications Capacity Full Load Starting
24000
Specifications Drum Diameter
14 inches
Specifications Line Speed
25 FPM
Specifications Model
E2CP Car Puller
Specifications Motor
20 HP
Specifications Net Weight
2350 lbs.
Specifications Optional Equipment
Electric Motor Brake - for precision spotting | Rotary travel limit switch | Controls to suit application | Cable Drum Pressure Roller - keeps rope in grooves under slack line conditions | Torque Limiter Mechanical Clutch - automatically resets when excessive pull is released
Specifications Winch Height
27 inches
Specifications Winch Length
71 inches
Specifications Winch Width
30 inches
Specifications Wire Rope Size
3/4 inches
Standard Features 0
Totally enclosed motor high torque hoist duty Precision gearing operating in oilbath lubrication All weather use is ideal for rugged model E2CP controlled pulling, stopping and spotting Large diameter drums increases wire rope lifePulling distance 50', 75', 150' each direction Rope leads both from one side or single lead from opposite side of drum All steel drum and base for maximum durability minimum 5 to 1 structural safety factor.
