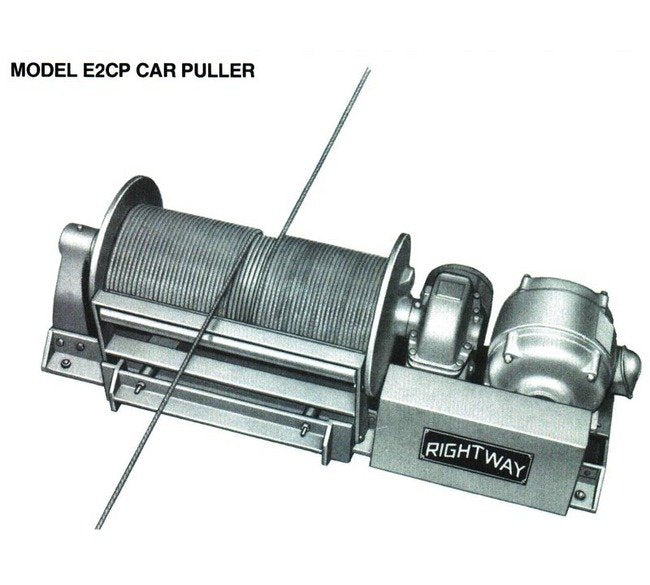

Rightway Winches Model E2CP Car Puller 8000/4000 lbs. Capacity, 7.5 HP Motor
Rightway Winches Model E2CP Car Puller 8000/4000 lbs. Capacity, 7.5 HP Motor
SKU:RIG-915d4f
High-performance Model E2CP Car Puller with 8000/4000 lbs. capacity, 7.5 HP motor, and precision gearing for controlled pulling and spotting tasks.
Regular price
$5,999.99
Regular price
Sale price
$5,999.99
Unit price
per
Initiate Order
Rightway Winches Model E2CP Car Puller 8000/4000 lbs. Capacity, 7.5 HP Motor
$5,999.99
Quantity: 1
Claim Your Seller Account
Rightway Winches Model E2CP Car Puller 8000/4000 lbs. Capacity, 7.5 HP Motor
$5,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Rightway Winches Model E2CP Car Puller is a high-performance solution for controlled pulling, stopping, and spotting tasks in rugged environments. With a capacity of 8000 lbs. at full load starting and 4000 lbs. at full load running, this car puller features a 7.5 HP motor and precision gearing operating in oilbath lubrication for reliable performance. The large diameter drums increase wire rope life, and the all-steel drum and base ensure maximum durability with a minimum 5 to 1 structural safety factor. Ideal for all-weather use, this car puller offers pulling distances of 50', 75', and 150' in each direction, with the option for rope leads from one side or a single lead from the opposite side of the drum.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Capacity Full Load Running
4000
Specifications Capacity Full Load Starting
8000
Specifications Drum Diameter
8 5/8 inches
Specifications Line Speed
30 FPM
Specifications Model
E2CP Car Puller
Specifications Motor
7 1/2 HP
Specifications Net Weight
985 lbs.
Specifications Optional Equipment
Electric Motor Brake - for precision spotting | Rotary travel limit switch | Controls to suit application | Cable Drum Pressure Roller - keeps rope in grooves under slack line conditions | Torque Limiter Mechanical Clutch - automatically resets when excessive pull is released
Specifications Winch Height
18 inches
Specifications Winch Length
56 inches
Specifications Winch Width
21 inches
Specifications Wire Rope Size
7/16 inches
Standard Features 0
Totally enclosed motor high torque hoist duty Precision gearing operating in oilbath lubrication All weather use is ideal for rugged model E2CP controlled pulling, stopping and spotting Large diameter drums increases wire rope lifePulling distance 50', 75', 150' each direction Rope leads both from one side or single lead from opposite side of drum All steel drum and base for maximum durability minimum 5 to 1 structural safety factor.
