Rightway Winches Model E2CP Car Pullers
Rightway Winches Model E2CP Car Pullers
SKU:RIG-59a4b6
High-torque hoist duty car pullers for precision pulling in all weather conditions, with durable construction and versatile rope lead configurations
Regular price
$5,899.99
Regular price
Sale price
$5,899.99
Unit price
per
Initiate Order
Rightway Winches Model E2CP Car Pullers
$5,899.99
Quantity: 1
Claim Your Seller Account
Rightway Winches Model E2CP Car Pullers
$5,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

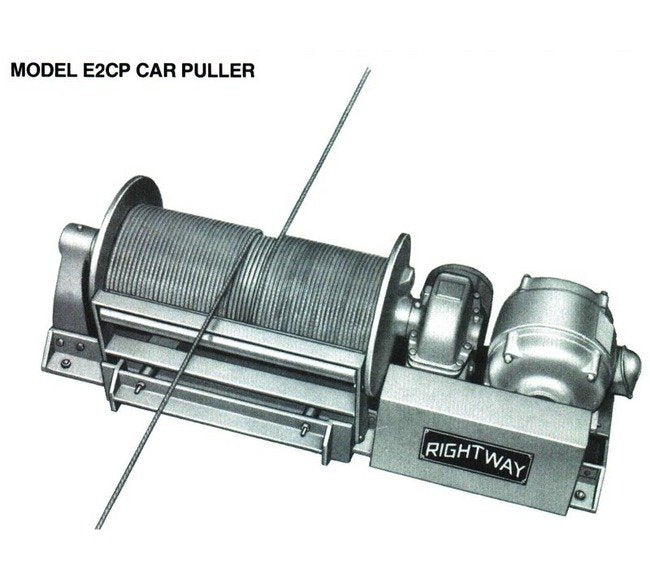

The Rightway Winches Model E2CP Car Pullers are designed for precision pulling, stopping, and spotting in all weather conditions. Featuring a high torque hoist duty motor, oilbath lubrication, and large diameter drums that increase wire rope life, these car pullers offer reliability and durability. With options for pulling distances of 50', 75', or 150' in each direction and rope lead configurations, they ensure versatile usage. Equipped with standard features such as a 5 to 1 structural safety factor and all steel drum and base construction, these pullers are ideal for rugged applications.
Product Specifications
Specifications Capacity Full Load Running
6000
Specifications Capacity Full Load Starting
12000
Specifications Drum Diameter
10 3/4 inches
Specifications Line Speed
45 FPM
Specifications Model
E2CP Car Puller
Specifications Motor
15 HP
Specifications Net Weight
1350 lbs.
Specifications Optional Equipment
Electric Motor Brake - for precision spotting | Rotary travel limit switch | Controls to suit application | Cable Drum Pressure Roller - keeps rope in grooves under slack line conditions | Torque Limiter Mechanical Clutch - automatically resets when excessive pull is released
Specifications Winch Height
21 inches
Specifications Winch Length
60 inches
Specifications Winch Width
24 inches
Specifications Wire Rope Size
1/2 inches
Standard Features 0
Totally enclosed motor high torque hoist duty Precision gearing operating in oilbath lubrication All weather use is ideal for rugged model E2CP controlled pulling, stopping and spotting Large diameter drums increases wire rope lifePulling distance 50', 75', 150' each direction Rope leads both from one side or single lead from opposite side of drum All steel drum and base for maximum durability minimum 5 to 1 structural safety factor.
