Rightway Winches Model E2CP Car Pullers
Rightway Winches Model E2CP Car Pullers
SKU:RIG-4be136
High torque precision car pullers for rugged applications, ideal for controlled pulling, stopping & spotting. All-weather use, maximum durability.
Regular price
$8,999.99
Regular price
Sale price
$8,999.99
Unit price
per
Initiate Order
Rightway Winches Model E2CP Car Pullers
$8,999.99
Quantity: 1
Claim Your Seller Account
Rightway Winches Model E2CP Car Pullers
$8,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

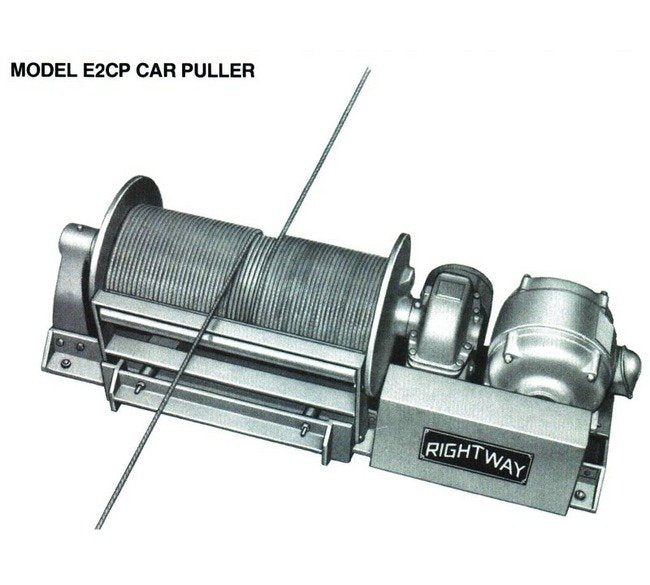

The Rightway Winches Model E2CP Car Pullers are designed for high torque hoist duty with a totally enclosed motor and precision gearing for exceptional performance. Operating in oilbath lubrication, these car pullers are suitable for all-weather use, making them ideal for rugged applications. Featuring a large diameter drum that increases wire rope life, these pullers offer pulling distances of 50', 75', and 150' in each direction. With a robust all-steel drum and base, these pullers ensure maximum durability and safety with a 5 to 1 structural safety factor. The Model E2CP Car Pullers are engineered for controlled pulling, stopping, and spotting with rope leads available from both sides of the drum.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Capacity Full Load Running
5000
Specifications Capacity Full Load Starting
10000
Specifications Drum Diameter
8 5/8 inches
Specifications Line Speed
25 FPM
Specifications Model
E2CP Car Puller
Specifications Motor
7 1/2 HP
Specifications Net Weight
1070 lbs.
Specifications Optional Equipment
Electric Motor Brake - for precision spotting | Rotary travel limit switch | Controls to suit application | Cable Drum Pressure Roller - keeps rope in grooves under slack line conditions | Torque Limiter Mechanical Clutch - automatically resets when excessive pull is released
Specifications Winch Height
18 inches
Specifications Winch Length
56 inches
Specifications Winch Width
21 inches
Specifications Wire Rope Size
1/2 inches
Standard Features 0
Totally enclosed motor high torque hoist duty Precision gearing operating in oilbath lubrication All weather use is ideal for rugged model E2CP controlled pulling, stopping and spotting Large diameter drums increases wire rope lifePulling distance 50', 75', 150' each direction Rope leads both from one side or single lead from opposite side of drum All steel drum and base for maximum durability minimum 5 to 1 structural safety factor.
