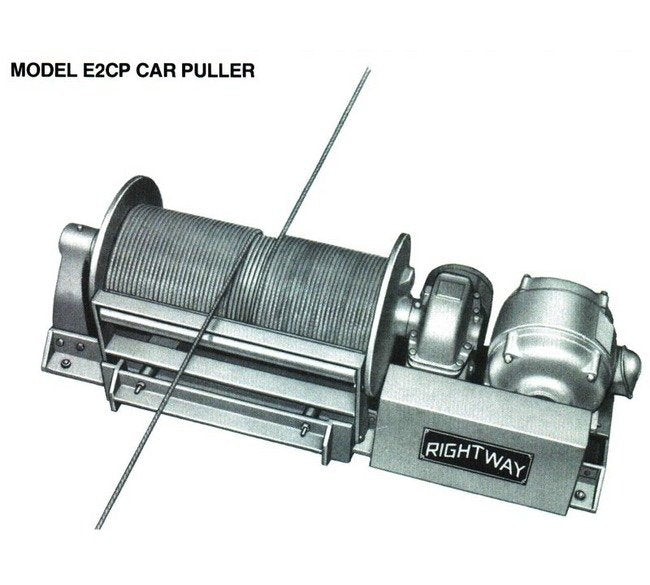

Rightway Winches Model E2CP Car Pullers
Rightway Winches Model E2CP Car Pullers
SKU:RIG-e0b94e
Experience high-torque precision with Rightway Winches Model E2CP Car Pullers. Ideal for rugged conditions with controlled pulling and stopping.
Regular price
$8,999.99
Regular price
Sale price
$8,999.99
Unit price
per
Initiate Order
Rightway Winches Model E2CP Car Pullers
$8,999.99
Quantity: 1
Claim Your Seller Account
Rightway Winches Model E2CP Car Pullers
$8,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Rightway Winches Model E2CP Car Pullers are designed for high-torque hoist duty with a totally enclosed motor for all-weather use in rugged conditions. With precision gearing operating in oilbath lubrication, this car puller ensures controlled pulling, stopping, and spotting with a minimum 5 to 1 structural safety factor. Featuring a 25 HP motor and a 16-inch drum diameter, it offers capacities of 30,000 lbs. (Starting) and 15,000 lbs. (Running) with a line speed of 25 FPM. The large diameter drum increases wire rope life, and optional equipment such as an Electric Motor Brake, Rotary travel limit switch, and Torque Limiter Mechanical Clutch enhance precision and safety.
Product Specifications
Specifications Capacity Full Load Running
15000
Specifications Capacity Full Load Starting
30000
Specifications Drum Diameter
16 inches
Specifications Line Speed
25 FPM
Specifications Model
E2CP Car Puller
Specifications Motor
25 HP
Specifications Net Weight
3050 lbs.
Specifications Optional Equipment
Electric Motor Brake - for precision spotting | Rotary travel limit switch | Controls to suit application | Cable Drum Pressure Roller - keeps rope in grooves under slack line conditions | Torque Limiter Mechanical Clutch - automatically resets when excessive pull is released
Specifications Winch Height
29 inches
Specifications Winch Length
77 inches
Specifications Winch Width
31 inches
Specifications Wire Rope Size
7/8 inches
Standard Features 0
Totally enclosed motor high torque hoist duty Precision gearing operating in oilbath lubrication All weather use is ideal for rugged model E2CP controlled pulling, stopping and spotting Large diameter drums increases wire rope lifePulling distance 50', 75', 150' each direction Rope leads both from one side or single lead from opposite side of drum All steel drum and base for maximum durability minimum 5 to 1 structural safety factor.
