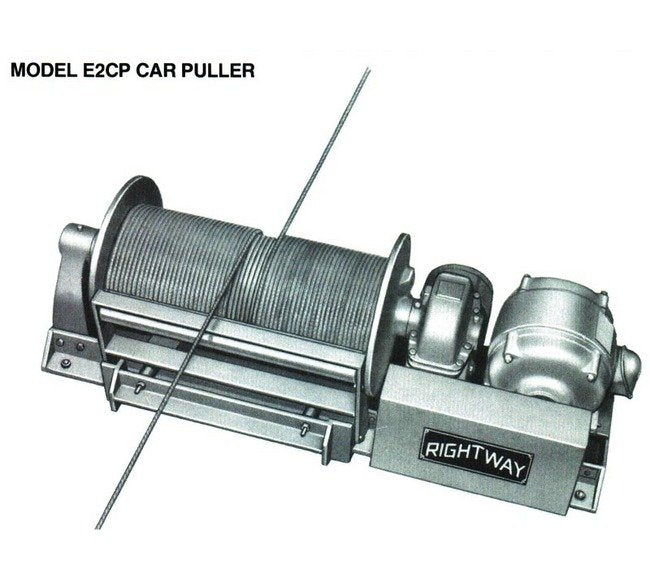

Rightway Winches Model E2CP Car Pullers
Rightway Winches Model E2CP Car Pullers
SKU:RIG-eccdcb
High torque hoist duty car pullers for precision pulling in rugged conditions. All-weather use with large diameter drums for increased wire rope life.
Regular price
$6,999.99
Regular price
Sale price
$6,999.99
Unit price
per
Initiate Order
Rightway Winches Model E2CP Car Pullers
$6,999.99
Quantity: 1
Claim Your Seller Account
Rightway Winches Model E2CP Car Pullers
$6,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Rightway Winches Model E2CP Car Pullers are built for precision pulling, stopping, and spotting in rugged conditions. With a high torque hoist duty motor and oilbath lubricated gearing, these car pullers are designed for all-weather use. The large diameter drums increase wire rope life, offering pulling distances of 50', 75', and 150' in each direction. The steel drum and base provide maximum durability with a minimum 5 to 1 structural safety factor, making them ideal for heavy-duty applications.
Product Specifications
Specifications Capacity Full Load Running
9000
Specifications Capacity Full Load Starting
18000
Specifications Drum Diameter
12 3/4 inches
Specifications Line Speed
45 FPM
Specifications Model
E2CP Car Puller
Specifications Motor
25 HP
Specifications Net Weight
1850 lbs.
Specifications Optional Equipment
Electric Motor Brake - for precision spotting | Rotary travel limit switch | Controls to suit application | Cable Drum Pressure Roller - keeps rope in grooves under slack line conditions | Torque Limiter Mechanical Clutch - automatically resets when excessive pull is released
Specifications Winch Height
24 inches
Specifications Winch Length
65 inches
Specifications Winch Width
27 inches
Specifications Wire Rope Size
5/8 inches
Standard Features 0
Totally enclosed motor high torque hoist duty Precision gearing operating in oilbath lubrication All weather use is ideal for rugged model E2CP controlled pulling, stopping and spotting Large diameter drums increases wire rope lifePulling distance 50', 75', 150' each direction Rope leads both from one side or single lead from opposite side of drum All steel drum and base for maximum durability minimum 5 to 1 structural safety factor.
