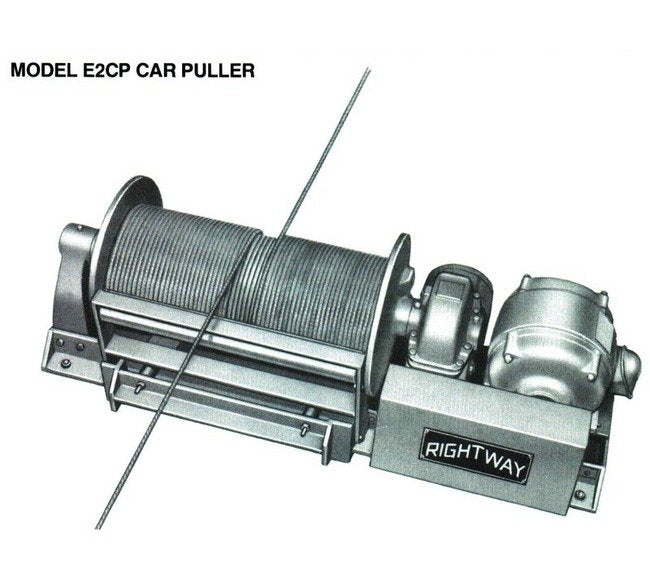

Rightway Winches Model E2CP Car Pullers
Rightway Winches Model E2CP Car Pullers
SKU:RIG-55f634
Powerful, durable, and precise car pullers for controlled operations in all weather conditions. Enhance efficiency and safety with optional equipment.
Regular price
$2,899.99
Regular price
Sale price
$2,899.99
Unit price
per
Initiate Order
Rightway Winches Model E2CP Car Pullers
$2,899.99
Quantity: 1
Claim Your Seller Account
Rightway Winches Model E2CP Car Pullers
$2,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Rightway Winches Model E2CP Car Pullers are engineered for high torque hoist duty with a totally enclosed motor and precision gearing in oilbath lubrication suitable for all weather use. Ideal for controlled pulling, stopping, and spotting, these car pullers feature large diameter drums to enhance wire rope life and offer pulling distances of 50', 75', or 150' in each direction. With a steel drum and base for maximum durability and a 5 to 1 structural safety factor, these car pullers deliver reliable performance for various applications. The 1 1/2 HP motor ensures efficient operation, while optional features like the Electric Motor Brake and Torque Limiter Mechanical Clutch enhance precision and safety.
Product Specifications
Specifications Capacity Full Load Running
1000
Specifications Capacity Full Load Starting
2000
Specifications Drum Diameter
5 3/4 inches
Specifications Line Speed
25 FPM
Specifications Model
E2CP Car Puller
Specifications Motor
1 1/2 HP
Specifications Net Weight
550 lbs.
Specifications Optional Equipment
Electric Motor Brake - for precision spotting | Rotary travel limit switch | Controls to suit application | Cable Drum Pressure Roller - keeps rope in grooves under slack line conditions | Torque Limiter Mechanical Clutch - automatically resets when excessive pull is released
Specifications Winch Height
16 inches
Specifications Winch Length
52 inches
Specifications Winch Width
20 inches
Specifications Wire Rope Size
1/4 inches
Standard Features 0
Totally enclosed motor high torque hoist duty Precision gearing operating in oilbath lubrication All weather use is ideal for rugged model E2CP controlled pulling, stopping and spotting Large diameter drums increases wire rope lifePulling distance 50', 75', 150' each direction Rope leads both from one side or single lead from opposite side of drum All steel drum and base for maximum durability minimum 5 to 1 structural safety factor.
