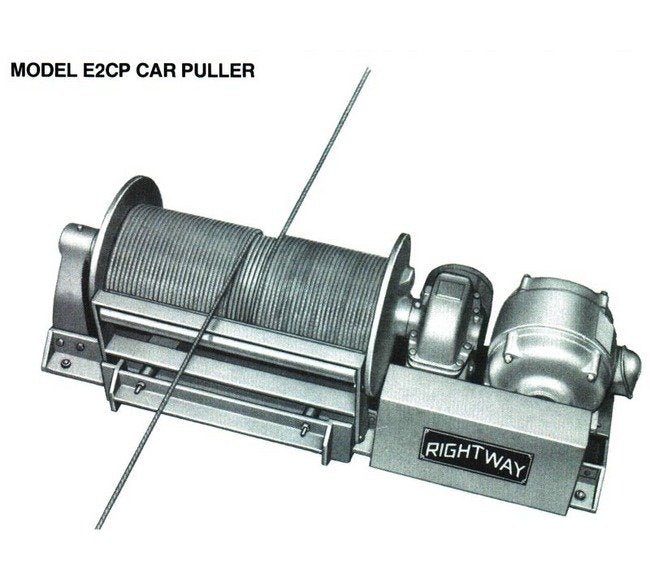

Rightway Winches Model E2CP Car Pullers
Rightway Winches Model E2CP Car Pullers
SKU:RIG-57266b
Rugged and versatile car pullers with high torque hoist duty and precision gearing for controlled pulling and spotting in any weather condition.
Regular price
$4,699.00
Regular price
Sale price
$4,699.00
Unit price
per
Initiate Order
Rightway Winches Model E2CP Car Pullers
$4,699.00
Quantity: 1
Claim Your Seller Account
Rightway Winches Model E2CP Car Pullers
$4,699.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Rightway Winches Model E2CP Car Pullers are designed for high torque hoist duty with precision gearing, operating in oilbath lubrication for all-weather use. Ideal for rugged controlled pulling, stopping, and spotting, it features large diameter drums for increased wire rope life. With pulling distances of 50', 75', and 150' in each direction, this car puller offers versatility with rope leads from one side or single lead from the opposite side of the drum. Built with an all-steel drum and base, it ensures maximum durability with a minimum 5 to 1 structural safety factor. The 3 HP motor and optional equipment like an Electric Motor Brake and Rotary travel limit switch make it a reliable choice for various applications.
Product Specifications
Specifications Capacity Full Load Running
2000
Specifications Capacity Full Load Starting
4000
Specifications Drum Diameter
6 5/8 inches
Specifications Line Speed
25 FPM
Specifications Model
E2CP Car Puller
Specifications Motor
3 HP
Specifications Net Weight
590 lbs.
Specifications Optional Equipment
Electric Motor Brake - for precision spotting | Rotary travel limit switch | Controls to suit application | Cable Drum Pressure Roller - keeps rope in grooves under slack line conditions | Torque Limiter Mechanical Clutch - automatically resets when excessive pull is released
Specifications Winch Height
16 inches
Specifications Winch Length
52 inches
Specifications Winch Width
20 inches
Specifications Wire Rope Size
5/16 inches
Standard Features 0
Totally enclosed motor high torque hoist duty Precision gearing operating in oilbath lubrication All weather use is ideal for rugged model E2CP controlled pulling, stopping and spotting Large diameter drums increases wire rope lifePulling distance 50', 75', 150' each direction Rope leads both from one side or single lead from opposite side of drum All steel drum and base for maximum durability minimum 5 to 1 structural safety factor.
