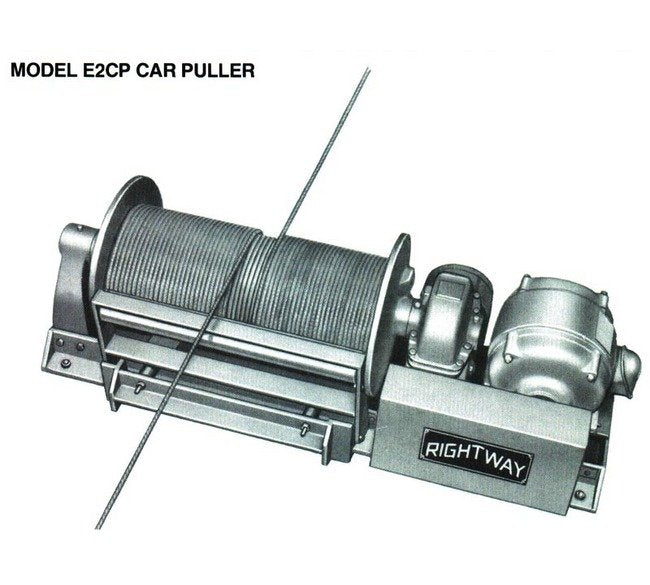

Rightway Winches Model E2CP Electric Car Puller
Rightway Winches Model E2CP Electric Car Puller
SKU:RIG-123af8
Heavy-duty E2CP Car Puller with 3 HP motor, high torque hoist duty, and oil-bath lubricated precision gearing for controlled pulling and spotting.
Regular price
$3,899.99
Regular price
Sale price
$3,899.99
Unit price
per
Initiate Order
Rightway Winches Model E2CP Electric Car Puller
$3,899.99
Quantity: 1
Claim Your Seller Account
Rightway Winches Model E2CP Electric Car Puller
$3,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Rightway Winches Model E2CP Car Puller is a heavy-duty solution designed for controlled pulling, stopping, and spotting applications. With a 3 HP motor and oil-bath lubricated precision gearing, this car puller ensures high torque performance in all weather conditions. The large diameter drum increases wire rope lifespan, offering pulling distances of 50', 75', and 150' in each direction. Featuring a steel drum and base for maximum durability, this model provides a 5 to 1 structural safety factor, making it ideal for rugged use.
Product Specifications
Specifications Capacity Full Load Running
1000
Specifications Capacity Full Load Starting
2000
Specifications Drum Diameter
5 3/4 inches
Specifications Line Speed
50 FPM
Specifications Model
E2CP Car Puller
Specifications Motor
3 HP
Specifications Net Weight
575 lbs.
Specifications Optional Equipment
Electric Motor Brake - for precision spotting | Rotary travel limit switch | Controls to suit application | Cable Drum Pressure Roller - keeps rope in grooves under slack line conditions | Torque Limiter Mechanical Clutch - automatically resets when excessive pull is released
Specifications Winch Height
16 inches
Specifications Winch Length
52 inches
Specifications Winch Width
20 inches
Specifications Wire Rope Size
1/4 inches
Standard Features 0
Totally enclosed motor high torque hoist duty Precision gearing operating in oilbath lubrication All weather use is ideal for rugged model E2CP controlled pulling, stopping and spotting Large diameter drums increases wire rope lifePulling distance 50', 75', 150' each direction Rope leads both from one side or single lead from opposite side of drum All steel drum and base for maximum durability minimum 5 to 1 structural safety factor.
