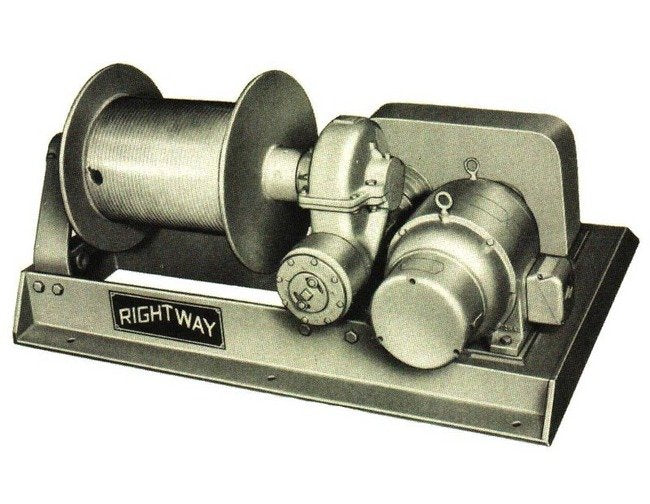

Rightway Winches Model E4 Electric Hoist
Rightway Winches Model E4 Electric Hoist
SKU:RIG-5966fa
Experience superior performance and reliability with Rightway Model E4 Hoists. Ideal for high-speed hoisting applications, featuring precision gearing and safety brakes.
Regular price
$7,999.99
Regular price
Sale price
$7,999.99
Unit price
per
Initiate Order
Rightway Winches Model E4 Electric Hoist
$7,999.99
Quantity: 1
Claim Your Seller Account
Rightway Winches Model E4 Electric Hoist
$7,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Rightway Winches Model E4 Heavy Duty Hoists are engineered for long lift high speed hoisting applications. Featuring a large drum diameter that increases wire rope longevity, precision gearing, and automatic mechanical load holding safety brake, these hoists ensure optimal performance and reliability. With a fully enclosed high torque motor, regenerative electric lowering, and a sturdy structural safety factor of 5 to 1, the Model E4 is ideal for rugged conditions. Additionally, optional features like electric motor brake and multiple layer reeving enhance functionality for diverse applications.
Product Specifications
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton
Specifications Drum 3 Layers
330 ft.
Specifications Drum Diameter
10 3/4 inches
Specifications Electrical Current
230/460-3-60
Specifications Full Drum
900 ft.
Specifications Line Speed
50 FPM
Specifications Motor
30 HP
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Net Weight
1370 lbs.
Specifications Optional Equipment
Controls to suit application | Grooved drums | Overspeed automatic load holding drum brake and electric shut-off | Electric Motor Brake (recommended for all hoisting applications) | Two or more wire ropes off the drum | Slack Line Limit Switch | Travel Limit Switch | Cable Drum Pressure Roller - assists multiple layer reeving evenly onto drum | Mechanical Torque Limiter - automatic reset
Specifications Running Capacity Lbs
10000
Specifications Standard Wire Rope Diameter
5/8 inches
Specifications Winch Height
26 inches
Specifications Winch Length
63 inches
Specifications Winch Width
31 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Standard Features 0
Ideal for long lift high speed hoisting applications Drum large diameter increases wire rope life Precision gearing self-locking reduction oil bath lubricated Safety brake automatic mechanical load holding type Regenerative lowering electrically retarded lowering speed Totally enclosed motor high torque hoist duty motor starting capacity is minimum two (2) times running All weather use is ideal for rugged model E4 winches minimum 5 to 1structural safety factor
