Rightway Winches Model E4 Heavy Duty Electric Hoist
Rightway Winches Model E4 Heavy Duty Electric Hoist
SKU:RIG-4e422b
Powerful and safe electric hoist for high-speed lifting applications, designed for durability and efficiency.
Regular price
$2,999.99
Regular price
Sale price
$2,999.99
Unit price
per
Initiate Order
Rightway Winches Model E4 Heavy Duty Electric Hoist
$2,999.99
Quantity: 1
Claim Your Seller Account
Rightway Winches Model E4 Heavy Duty Electric Hoist
$2,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

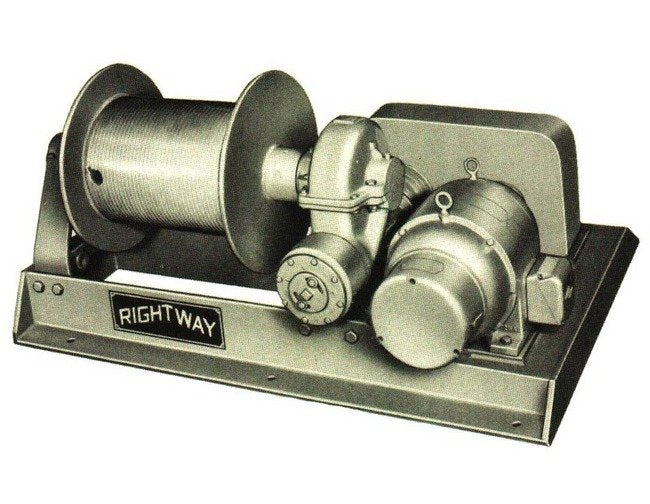

The Rightway Winches Model E4 Heavy Duty Electric Hoist is designed for high-speed hoisting applications, featuring a large drum diameter for increased wire rope life. With a powerful 7 1/2 HP motor and automatic safety features like a self-locking reduction oil bath, mechanical load holding brake, and regenerative electric lowering, this hoist ensures efficient and safe lifting operations. Suitable for all-weather use with a rugged build meeting a 5 to 1 structural safety factor, this hoist is ideal for demanding industrial applications.
Product Specifications
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton
Specifications Drum 3 Layers
280 ft.
Specifications Drum Diameter
4 1/2 inches
Specifications Electrical Current
230/460-3-60
Specifications Full Drum
650 ft.
Specifications Line Speed
80 FPM
Specifications Motor
7 1/2 HP
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Net Weight
435 lbs.
Specifications Optional Equipment
Controls to suit application | Grooved drums | Overspeed automatic load holding drum brake and electric shut-off | Electric Motor Brake (recommended for all hoisting applications) | Two or more wire ropes off the drum | Slack Line Limit Switch | Travel Limit Switch | Cable Drum Pressure Roller - assists multiple layer reeving evenly onto drum | Mechanical Torque Limiter - automatic reset
Specifications Running Capacity Lbs
2000
Specifications Standard Wire Rope Diameter
5/16 inches
Specifications Winch Height
16 inches
Specifications Winch Length
49 inches
Specifications Winch Width
20 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Standard Features 0
Ideal for long lift high speed hoisting applications Drum large diameter increases wire rope life Precision gearing self-locking reduction oil bath lubricated Safety brake automatic mechanical load holding type Regenerative lowering electrically retarded lowering speed Totally enclosed motor high torque hoist duty motor starting capacity is minimum two (2) times running All weather use is ideal for rugged model E4 winches minimum 5 to 1structural safety factor
