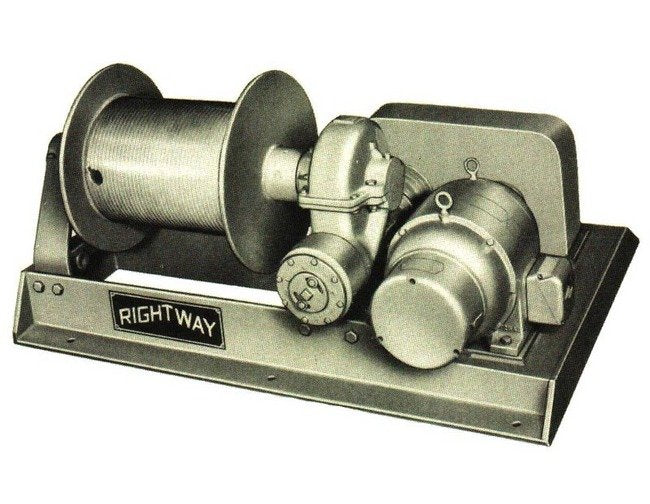

Rightway Winches Model E4 Heavy Duty Hoists
Rightway Winches Model E4 Heavy Duty Hoists
SKU:RIG-c9774f
Speed up heavy-duty hoisting with precision. Ideal for high-risk lifting applications. Order now!
Regular price
$5,699.99
Regular price
Sale price
$5,699.99
Unit price
per
Initiate Order
Rightway Winches Model E4 Heavy Duty Hoists
$5,699.99
Quantity: 1
Claim Your Seller Account
Rightway Winches Model E4 Heavy Duty Hoists
$5,699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Rightway Winches Model E4 Heavy Duty Hoists are designed for long lift high-speed hoisting applications. With a large drum diameter that increases wire rope life, precision gearing, self-locking reduction, and oil bath lubrication, this hoist ensures optimal performance and safety. The safety brake is automatic with mechanical load holding capability, while regenerative lowering provides electrically retarded lowering speed. Featuring a totally enclosed high torque motor, all-weather usability, and a minimum 5 to 1 structural safety factor, the Model E4 is a rugged and reliable choice. Optional equipment includes controls tailored to specific applications, grooved drums, automatic load-holding drum brake, and more, making it versatile and compliant with institutional procurement standards.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton
Specifications Drum 3 Layers
350 ft.
Specifications Drum Diameter
8 3/4 inches
Specifications Electrical Current
230/460-3-60
Specifications Full Drum
815 ft.
Specifications Line Speed
65 FPM
Specifications Motor
15 HP
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Net Weight
910 lbs.
Specifications Optional Equipment
Controls to suit application | Grooved drums | Overspeed automatic load holding drum brake and electric shut-off | Electric Motor Brake (recommended for all hoisting applications) | Two or more wire ropes off the drum | Slack Line Limit Switch | Travel Limit Switch | Cable Drum Pressure Roller - assists multiple layer reeving evenly onto drum | Mechanical Torque Limiter - automatic reset
Specifications Running Capacity Lbs
5000
Specifications Standard Wire Rope Diameter
1/2 inches
Specifications Winch Height
23 inches
Specifications Winch Length
57 inches
Specifications Winch Width
26 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Standard Features 0
Ideal for long lift high speed hoisting applications Drum large diameter increases wire rope life Precision gearing self-locking reduction oil bath lubricated Safety brake automatic mechanical load holding type Regenerative lowering electrically retarded lowering speed Totally enclosed motor high torque hoist duty motor starting capacity is minimum two (2) times running All weather use is ideal for rugged model E4 winches minimum 5 to 1structural safety factor
