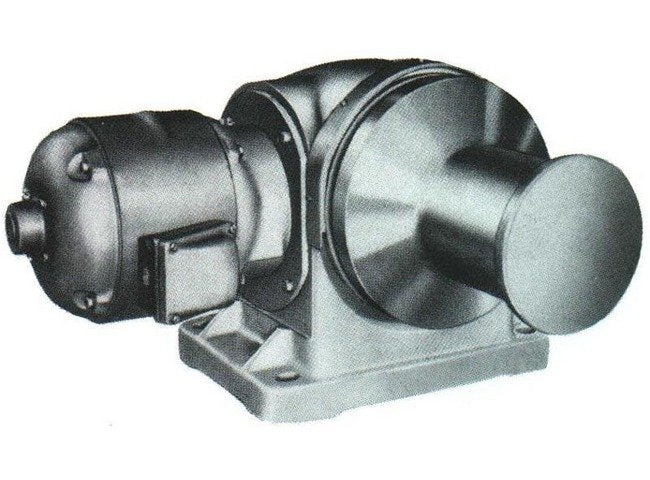

Rightway Winches Model HC Horizontal Capstans
Rightway Winches Model HC Horizontal Capstans
SKU:RIG-183c73
Reliable, all-weather capstans with 10,000 lbs Pull Capacity, high starting torque motor, and heavy-duty construction for long-term use.
Regular price
$2,899.99
Regular price
Sale price
$2,899.99
Unit price
per
Initiate Order
Rightway Winches Model HC Horizontal Capstans
$2,899.99
Quantity: 1
Claim Your Seller Account
Rightway Winches Model HC Horizontal Capstans
$2,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Rightway Winches Model HC Horizontal Capstans are designed for reliable and durable performance in all weather conditions. With a pull capacity of 10,000 lbs (Starting) and 5,000 lbs (Running), these capstans feature fully enclosed power train with oilbath lubrication for seamless operation. Constructed with high-quality steel and a minimum 5 to 1 structural safety factor, these capstans ensure long-term reliability. The totally enclosed motor provides high starting torque, while the heavy-duty design guarantees solid construction, making them ideal for institutional and government applications.
Product Specifications

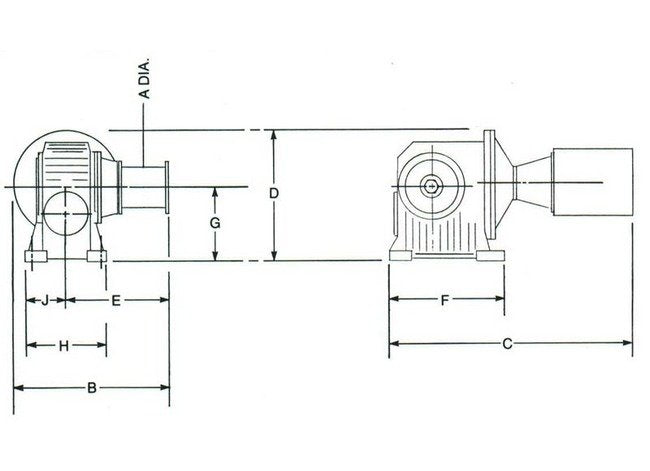

Specifications Dimension A
6 inches
Specifications Dimension B
23 inches
Specifications Dimension C
40 inches
Specifications Dimension D
19 1/2 inches
Specifications Dimension E
16 inches
Specifications Dimension F
17 inches
Specifications Dimension G
12 inches
Specifications Dimension H
12 inches
Specifications Dimension J
6 inches
Specifications Line Speed
20 FPM
Specifications Net Weight
630 lbs.
Specifications Pull Capacity Running
5000
Specifications Pull Capacity Starting
10000
Standard Features 0
All weather use is ideal for rightway capstans Fully enclosed power train oilbath lubrication All steel construction minimum 5 to 1 structural safety factor Totally enclosed motor high starting torque Heavy duty design solid construction for long life
