Rightway Winches Single Horizontal Sheave Assemblies
Rightway Winches Single Horizontal Sheave Assemblies
SKU:RIG-2b20b1
Explore the versatile Rightway Winches Single Horizontal Sheave Assembly for efficient lifting, pulling, and secure operations.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
Rightway Winches Single Horizontal Sheave Assemblies
$249.99
Quantity: 1
Claim Your Seller Account
Rightway Winches Single Horizontal Sheave Assemblies
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Rightway Winches Single Horizontal Sheave Assembly, Model SHS, is a robust solution designed for lifting and pulling tasks, with a lifting capacity of 2000 lbs. This assembly features a 5/16-inch Wire Rope Diameter and a 5-inch Pitch Diameter, ensuring reliable performance in various applications. Equipped with a Lever Drum and Magnetic Remote Pushbutton controls, this assembly offers flexibility and ease of operation. Whether mounted horizontally, inverted on the ceiling, or vertically, this assembly provides versatility and efficiency for your winching needs.
Product Specifications
Specifications Capacity
2000 lbs.
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton

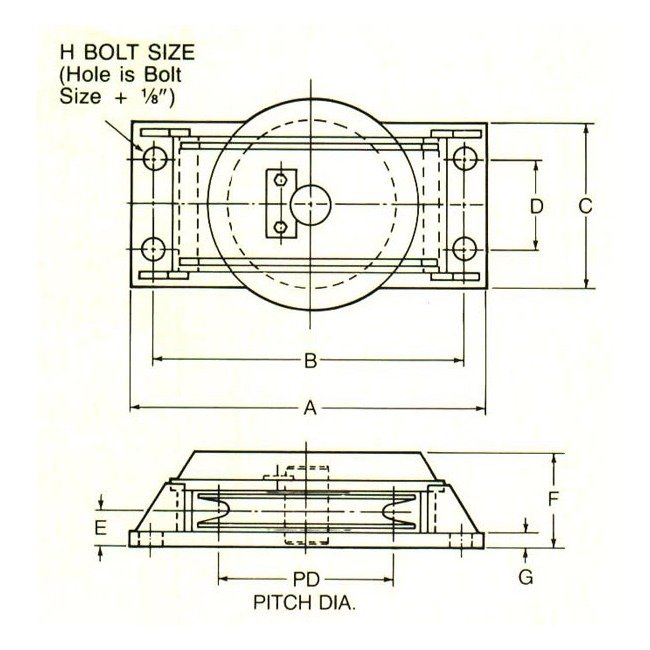

Specifications Dimension A
13 inches
Specifications Dimension B
11 1/2 inches
Specifications Dimension C
6 inches
Specifications Dimension D
3 1/4 inches
Specifications Dimension E
1 1/2 inches
Specifications Dimension F
4 1/8 inches
Specifications Dimension G
5/8 inches
Specifications Dimension H
3/4 inches
Specifications Model
SHS
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Pitch Diameter
5 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Specifications Wire Rope Diameter
5/16 inches
