Rightway Winches Turnbuckle Take-Up Assembly - 6000 lbs Capacity, 1/2" Wire Rope
Rightway Winches Turnbuckle Take-Up Assembly - 6000 lbs Capacity, 1/2" Wire Rope
SKU:RIG-fd7335
Heavy-duty 6000 lbs capacity Turnbuckle Take-Up Assembly for lifting and pulling applications. Compliant with Federal standards.
Regular price
$459.99
Regular price
Sale price
$459.99
Unit price
per
Initiate Order
Rightway Winches Turnbuckle Take-Up Assembly - 6000 lbs Capacity, 1/2" Wire Rope
$459.99
Quantity: 1
Claim Your Seller Account
Rightway Winches Turnbuckle Take-Up Assembly - 6000 lbs Capacity, 1/2" Wire Rope
$459.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Rightway Winches Turnbuckle Take-Up Assembly is a robust solution designed for heavy-duty applications, with a lifting and pulling capacity of 6000 lbs. This assembly includes a 1/2" wire rope and essential features like a ratchet take-up of 33 inches, lever drum controls mounted at the winch, and options for horizontal base, inverted ceiling, or vertical mounting. Ideal for use in situations where Electrical Brake is required, this assembly ensures precise control and safety in lifting operations. Compliant with Federal procurement standards and industry certifications, this product guarantees reliability and performance.
Product Specifications
Specifications Capacity
6000 lbs.
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton

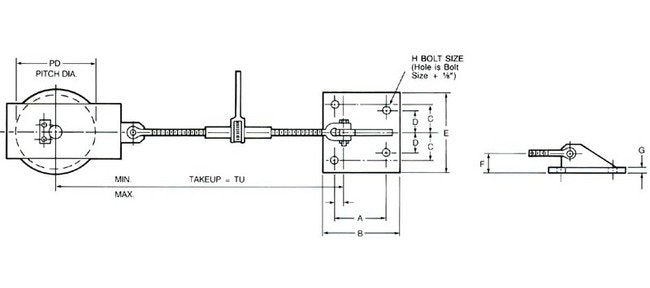

Specifications Dimension A
10 inches
Specifications Dimension B
13 inches
Specifications Dimension C
4 inches
Specifications Dimension D
3 inches
Specifications Dimension E
11 inches
Specifications Dimension F
3 1/2 inches
Specifications Dimension G
3/4 inches
Specifications Dimension H
1 inches
Specifications Max Size
90 1/2
Specifications Min Size
57 1/2
Specifications Model
TTA
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Pitch Diameter
8 inches
Specifications Ratchet Takeup
33 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Specifications Wire Rope Diameter
1/2 inches
