Rigid Flange Mount Locking Brake Levers

Rigid Flange Mount Locking Brake Levers

SKU:PUS-938c1b

Precision-engineered Rigid Flange Mount Locking Brake Levers for durable and reliable cable control.

Regular price $39.99
Regular price Sale price $39.99
Sale

Initiate Order

Rigid Flange Mount Locking Brake Levers

Rigid Flange Mount Locking Brake Levers

$39.99

Quantity: 1

Claim Your Seller Account

Rigid Flange Mount Locking Brake Levers

Rigid Flange Mount Locking Brake Levers

$39.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

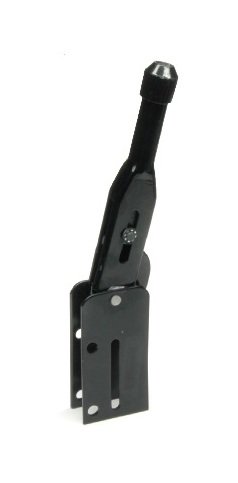

The Rigid Flange Mount Locking Brake Levers are designed for precise cable control in demanding applications. Featuring a rigid frame for enhanced durability, these levers maintain alignment for prolonged clevis pin and side plate life. This kit includes essential hardware for installation ease, ensuring secure and reliable operation. With specifications meeting CS550-2 @ 3000 lb and 072/073 @ 3000 lb, these brake levers offer top-tier performance and compliance with industry standards.

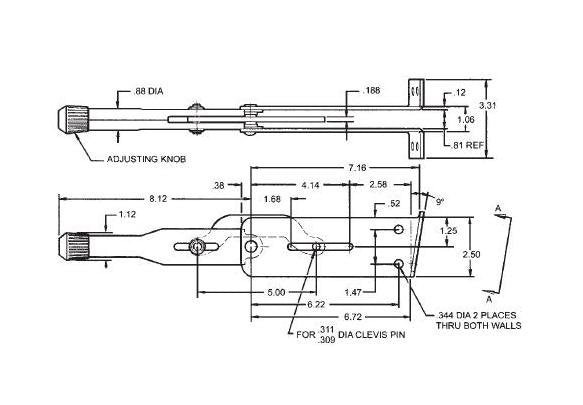

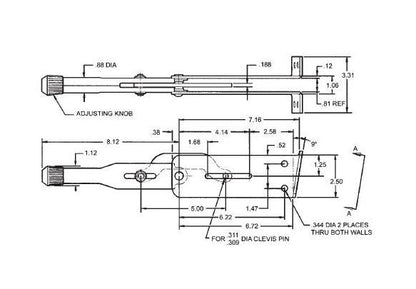

Product Specifications

Specifications Conduit Fitting 1500 Lb
062
Specifications Conduit Fitting 3000 Lb
072 | 073
Specifications Dimension Bmax
3.94 " | 4.07 "
Specifications Dimension Bmin
2.34 " | 2.47 "
Specifications Dim A
1.70 " | 1.83 "
Specifications Innermember Fitting 1500 Lb
CS550
Specifications Innermember Fitting 3000 Lb
CS550-2
CAGE
0T9L4
NAICS
326199
PSC
5975
