Rincon™ Powered Suspension System Kits by Griplock®

Name: Rincon™ Powered Suspension System Kits by Griplock®
Brand: Griplock Systems, LLC
SKU: RIN-b147a6
Price: 129.99 USD
Availability: OutOfStock

SKU:RIN-b147a6

Enhance your lighting fixtures with Rincon™ Powered Suspension System Kits by Griplock® - strong support, modern design, easy installation.

$129.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

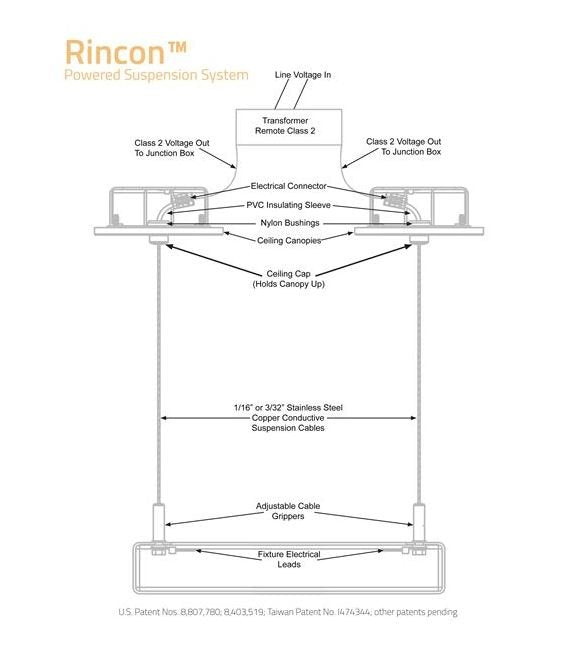

Enhance your lighting fixtures with Rincon™ Powered Suspension System Kits by Griplock®. These sturdy and innovative kits effortlessly power and suspend Class 2 LED fixtures, offering a sleek and modern appearance without the hassle of additional cords. With strong suspension support, Cordfree™ technology, and easy field installation, these kits are perfect for linear fixtures, light boxes, or multi-pendant LED setups. Each kit includes conductive cables, ceiling and fixture assembly hardware, and is available in various cable sizes and lengths. Patent-protected design for assured quality and performance.

Product Specifications

Additional Information Available Standard Cable Lengths

48 in | 120 in | 180 in | 240 in

Additional Information Cable Material

7 x 7 Copper | 7 x 7 Stainless Steel

Additional Information Cable Size

1/16 in | 3/32 in | 1.6 mm | 2.4 mm

Additional Information Cordfree Technology

For Use with Class 2 LED Fixtures100 Watts/60 Volts DC in U.S.100 Watts/30 Volts DC in Canada

Additional Information Easy Field Installation

Labor-Saving Tool-Free InstallationQuickly Adjust and Re-Adjust to Any Height

Additional Information Elegant Design

No Bulky Power Cords NeededFixtures Have a Clean, Modern Look

Additional Information Single Conductor Powered Suspension Syste

Ideal for Linear Fixtures, Light Boxes, or Multi-Pendant LED Fixtures Requiring Multiple Conductors

Additional Information System Includes

2 x Conductive Cables with Steel Sleeve2 x Ceiling Assembly Hardware2 x Fixture Assembly Hardware2 x Insulating SleevesInstruction Sheet

Note 0

U.S. Patent Nos. 8,807,780; 8,403,519; Taiwan Patent No. I474344; other patents pending.

Strong Suspension For Heavy Fixtures Safe Working Load Swl

For 1/16 in. Cable: 40 lb Per Suspension | For 3/32 in. Cable: 100 lb Per Suspension

Rincon™ Powered Suspension System Kits by Griplock®
