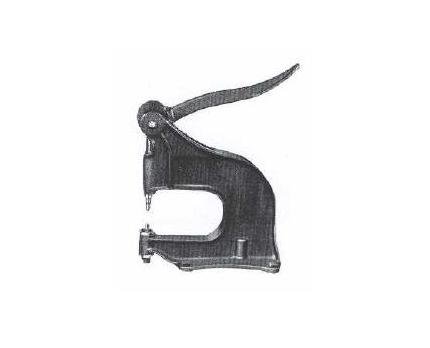

The Model 33 Riveter is designed for the small shop where a limited amount of brake and clutch repair work is done. It is used for the relining of brakes and clutches for automobiles, trucks, buses and tractors which use 1/8", 9/64" and 3/16" body diameter brake lining rivets. The long handle and cam design develop and exceptionally strong squeezing action on the riveting tool. Anvil height is adjustable for rivets of different lengths. It is easily mounted to a bench with three bolts. The standard tooling includes the most popular tools for removing old rivets and setting new rivets in brake shoes, brake bands and clutch plates.
Product Specifications
Specifications Anvil Height
2-1/2 Inch
Specifications Bench Space
4x10 Inch
Specifications Description
10-32 Allen Wrench
Specifications Net Weight
14 lb
Specifications Overall Height
20 Inch
Specifications Stroke
7/8 Inch
Specifications Throat Depth
5-7/8 Inch
Specifications Tubular Rivet Diameter
9/64 to 3/16 Inch
Specifications Tubular Rivet Length
5/8 Inch
