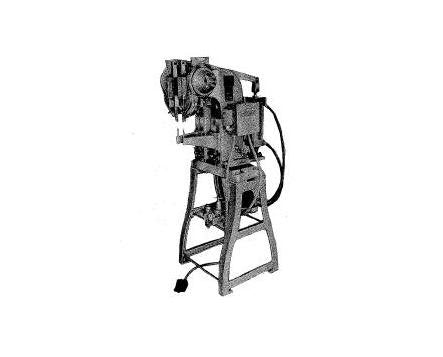

Riveting Machine Model 172
Riveting Machine Model 172
SKU:STA-1ff8a7
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Riveting Machine Model 172
$49.99
Quantity: 1
Claim Your Seller Account
Riveting Machine Model 172
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Flexible and versatile ... with muscle when its needed. Adjustable centers for double riveting. The 172 has a 9" throat. Both háve the soft-but-strong squeezing action of air-powered machines. FEATURES Increased production and greater versatility -Quick change fééd systém for different rivet sizes. -Precision machined pads on column to locate the horns at various heights. -Adaptable to a wide variety of horns and anvil holders. Reduced Down-Time -Enclosed top lever guard. -Easy accessibility of all parts for service. -Practical parts numbering systém for quick, correct replacement. -Design and construction assure life-long service. Optional Features -Aligning, resting and clamping fixtures. -Safety guards to job specifications. -Duál palm-buttons and safety probes. -Production counters. -Choice of paint color. This listing of riveters is subject to change without notice. This list is not our complete line of units, should you not see specifically what your requirements entail, please contact Chicago Rivet engineering direct to discuss your specific applications. E-Mail sales@chicagorivet.com, or 630-357-8500.
Product Specifications
Specifications Air Required
65 psi, .1.28 cu. ft.
Specifications Anvil Height
45 Inch
Specifications Cycle Time
1 Second
Specifications Drive
Pneumatic
Specifications Electrical Controls
110 V AC, 1 A
Specifications Floor Space
28 x 32 Inch
Specifications Hopper
7" Std., 8"& 10" Available
Specifications Max Tubular Rivet Capacity Diameter
0.188 Inch
Specifications Max Tubular Rivet Capacity Length
1 3/8 Inch
Specifications Mounting Type
Floor
Specifications Net Weight
675 lb
Specifications Overall Height
64 Inch
Specifications Setting
Multi Head
Specifications Stroke
3 Inch
Specifications Throat Depth
9 Inch
