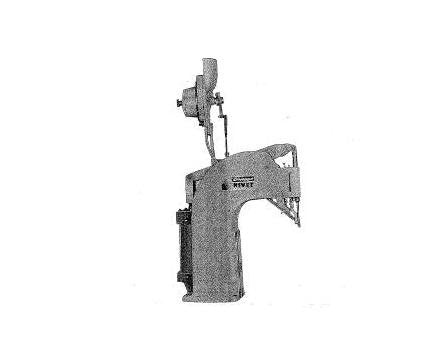

Riveting Machine Model 174
Riveting Machine Model 174
SKU:STA-bf8229
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Riveting Machine Model 174
$49.99
Quantity: 1
Claim Your Seller Account
Riveting Machine Model 174
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Rear mounted cylinder and hopper allows compact design and close rivet placement. Rivets can be set as close as 13/16" with Machine 174. These machines can be furnished as power heads for your machine design, or as complete units, mounted and synchronized.FEATURESQuality Production-Chicago Rivet & Machine Co.'s direct drive setting lever automatically senses and compensates for work piece thickness variation.Greater Versatility-Modular wedge shape allows fabrication of MHR (multi-head riveter) assembly machines.-Complete feed systems for different rivet sizes available.Reduced Down Time-Raceway system located inside machine casting which insures protection from accidental damage.Machine Guarding-Complete guarding is standard when purchased as individual riveter - Special guard systems designed for "MHR" assembly machines.-Optional "point of operation" devices available.Optional Features-Vibratory Hopper-Custom tooled with sliding fixtures, dial index units and other automation devices. -Column Machine -Quoted upon request. -Auxiliary hopper actuation for hard to feed rivets.This listing of riveters is subject to change without notice. This list is not our complete line of units,should you not see specifically what your requirements entail, please contact Chicago Rivet engineering direct to discuss your specific applications. E-Mail sales@chicagorivet.com, or 630-357-8500.
Product Specifications
Specifications Air Required
65 psi, .24 cu. ft.
Specifications Anvil Height
11 5/16 Inch
Specifications Cluster Minimum Centers
13/16 Inch
Specifications Cycle Time
1 Second
Specifications Drive
Pneumatic
Specifications Electrical Controls
Extra
Specifications Hopper
7 Inch
Specifications Max Tubular Rivet Capacity Diameter
0.157 Inch
Specifications Max Tubular Rivet Capacity Length
7/16 Inch
Specifications Mounting Type
Bench
Specifications Net Weight
170 lb
Specifications Overall Height
41 Inch
Specifications Setting
Single Head
Specifications Stroke
1 1/2 Inch
Specifications Throat Depth
12 Inch
