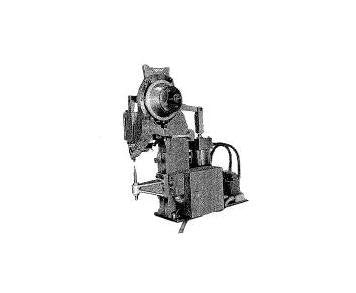

Small and medium task machines for bench mounting. Features the son-but-strong squeezing action of cushion-air powered single rivet setting. Ideal for fragile materials ... accepts wide tolerance variations.FEATURESIncreased production and greater versatility-Chicago Rivet & Machine Co.'s direct drive setting lever automatically senses and compensates for work piece thickness variation.-Quick change feed systems for different rivet sizes, available.-Adaptable to a wide variety of horns and anvil holders.Reduced Down Time-Enclosed top lever guard.-Easy accessibility of all parts for service.-Practical parts numbering system for quick, correct replacement.-Design and construction assure life-long service.Optional Features-Aligning, resting and clamping fixtures. -Safety guards to job specifications. -Dual palm-buttons and safety probes. -Production counters. -Choice of paint color.This listing of riveters is subject to change without notice. This list is not our complete line of units,should you not see specifically what your requirements entail, please contact Chicago Rivet engineering direct to discuss your specific applications. E-Mail sales@chicagorivet.com, or 630-357-8500.
Product Specifications
Specifications Air Required
65 psi, .28 cu. ft.
Specifications Anvil Height
11 1/2 Inch
Specifications Bench Space
20 x 26 Inch
Specifications Cycle Time
0.9 Second
Specifications Drive
Pneumatic
Specifications Electrical Controls
110 V AC, 1 A
Specifications Hopper
7 Inch
Specifications Max Tubular Rivet Capacity Diameter
0.156 Inch
Specifications Max Tubular Rivet Capacity Length
5/8 Inch
Specifications Mounting Type
Bench
Specifications Net Weight
190 lb
Specifications Overall Height
30 Inch
Specifications Setting
Single Head
Specifications Stroke
2 Inch
Specifications Throat Depth
6 Inch
