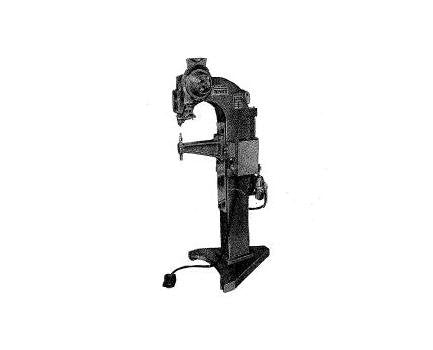

Riveting Machine Model 190
Riveting Machine Model 190
SKU:STA-cfecdb
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Riveting Machine Model 190
$49.99
Quantity: 1
Claim Your Seller Account
Riveting Machine Model 190
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
These are floor-mounted machines for use with larger rivets.... deeper throat requirements. They feature the soft-but-strong squeezing action of cushion-air-powered single rivet setting. Ideal for fragile materials and wide tolerance variations. FEATURES Increased production and greater versatility -Quick change feed system for different rivet sizes. -Precision machined pads on column to locate the horns at various heights. -Adaptable to a wide variety of horns and anvil holders. Reduced Down-Time -Enclosed top lever guard. -Easy accessibility of all parts for service. -Practical parts numbering system for quick, correct replacement. -Design and construction assure life-long service. Optional Features -Aligning, resting and clamping fixtures. -Safety guards to job specifications. -Dual palm-buttons and safety probes. -Production counters. -Choice of paint color. This listing of riveters is subject to change without notice. This list is not our complete line of units, should you not see specifically what your requirements entail, please contact Chicago Rivet engineering direct to discuss your specific applications. E-Mail sales@chicagorivet.com, or 630-357-8500.
Product Specifications
Specifications Air Required
60 psi, .57 cu. ft.
Specifications Anvil Height
41 1/2 Inch
Specifications Cycle Time
1 Second
Specifications Drive
Pneumatic
Specifications Electrical Controls
110 V AC, 1 A
Specifications Floor Space
23 x 30 Inch
Specifications Hopper
7" Std. 8" Avail.
Specifications Max Tubular Rivet Capacity Diameter
0.188 Inch
Specifications Max Tubular Rivet Capacity Length
5/8 to 15/16 Inch
Specifications Mounting Type
Floor
Specifications Net Weight
500 lb
Specifications Overall Height
60 Inch
Specifications Setting
Single Head
Specifications Stroke
2 1/2 Inch
Specifications Throat Depth
12 Inch
