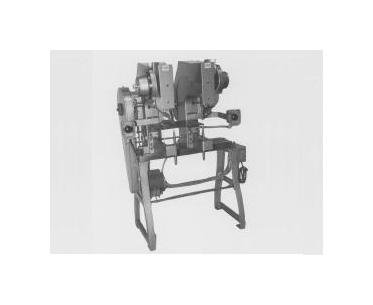

Riveting Machine Model 214
Riveting Machine Model 214
SKU:STA-ca46c1
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Riveting Machine Model 214
$49.99
Quantity: 1
Claim Your Seller Account
Riveting Machine Model 214
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
FEATURES Increased Production and Greater Versatility -Fast machine cycle with solenoid-operated, roller-type clutch -Quick change feed system for different rivet sizes -Precision machined pads on heads to locate the horns at various heights -Adaptable to a wide variety of horns and anvil holders Reduce Down Time -Bronze bushing on flywheel -Enclosed belt and top lever guards -Easy accessibility of all parts for service -Practical parts numbering system for quick, correct replacements -Design and construction assure life-long service Optional Features -Aligning, resting and clamping fixtures -Safety guards to job specifications -Dual palm-buttons and safety probes -Production counters -Choice of paint color SPECIAL FEATURES -Deepest-throat machine of the adjustable center riveters -Wide range of applications -Popular for three-ring binder assembly This listing of riveters is subject to change without notice. This list is not our complete line of units, should you not see specifically what your requirements entail, please contact Chicago Rivet engineering direct to discuss your specific applications. E-Mail sales@chicagorivet.com, or 630-357-8500.
Product Specifications
Specifications Adjustable Centers
3/4" to 6 1/2" Std., 5/16" to 18" Available
Specifications Anvil Height
44 Inch
Specifications Drive
Motor
Specifications Floor Space
32 x 28 Inch
Specifications Flywheel Speed
175 rpm
Specifications Hopper
(2) 7" Std., 8" & 10" Available
Specifications Max Tubular Rivet Capacity Diameter
0.156 Inch
Specifications Max Tubular Rivet Capacity Length
5/8 Inch
Specifications Motor
1/3 HP, 1140 rpm
Specifications Mounting Type
Floor
Specifications Net Weight
785 lb
Specifications Overall Height
63 Inch
Specifications Setting
Multi Head
Specifications Stroke
1 1/2 to 3 Inch
Specifications Throat Depth
14 Inch
