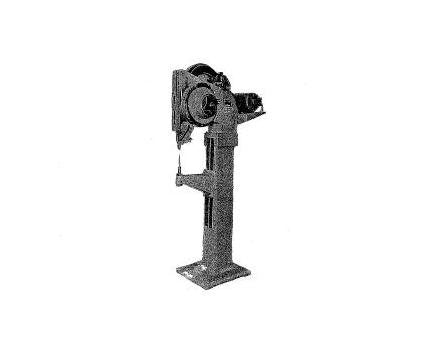

Huskier, faster, economical for heavy-duty work, the 449 uses rivets up to 7/8" long. Typical uses are furniture, appliances and automotive applications.FEATURESIncreased Production and Greater Versatility-Fast machine cycle with solenoid-operated, roller type clutch.-Quick change feed system for different rivet sizes.-Precision machined pads on column to locate the horns at various heights.-Adaptable to a wide variety of horns and anvil holders. Reduced Down-Time-Hardened steel toggle bearings.-Bronze bushing on flywheel.-Enclosed belt and top lever guards.-Easy accessabiiity of all parts for service.-Practical parts numbering system for quick, correct replacements.-Design and construction assure life-long service. Optional Features-Aligning, resting and clamping fixtures.-Safety guards to job specifications.-Dual palm-buttons and safety probes.-Production counters.-Needle bearing flywheel.-Compensating spring.-Choice of paint color.This listing of riveters is subject to change without notice. This list is not our complete line of units,should you not see specifically what your requirements entail, please contact Chicago Rivet engineering direct to discuss your specific applications. E-Mail sales@chicagorivet.com, or 630-357-8500.
Product Specifications
Specifications Anvil Height
42 Inch
Specifications Drive
Motor
Specifications Floor Space
22 x 38 Inch
Specifications Flywheel Speed
175 rpm
Specifications Hopper
8 Inch
Specifications Max Tubular Rivet Capacity Diameter
0.25 Inch
Specifications Max Tubular Rivet Capacity Length
7/8 Inch
Specifications Motor
1/3 HP, 1140 rpm
Specifications Mounting Type
Floor
Specifications Net Weight
615 lb
Specifications Overall Height
70 1/2 Inch
Specifications Setting
Single Head
Specifications Stroke
2 1/2 to 3 1/4 Inch
Specifications Throat Depth
12 Inch
