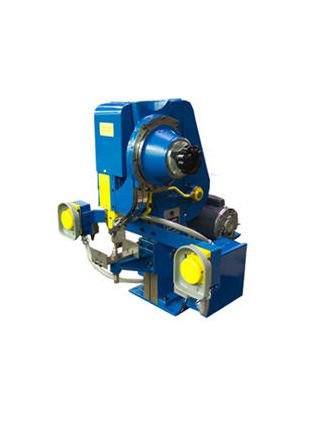

Riveting Machine Model 450
Riveting Machine Model 450
SKU:STA-f5f859
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Riveting Machine Model 450
$49.99
Quantity: 1
Claim Your Seller Account
Riveting Machine Model 450
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
FEATURES Increased Production and Greater Versatility -Fast machine cycle with solenoid-operated, roller-type clutch -Quick change feed system for different rivet sizes -Precision machined pad on head or pedestal to locate the horn at various heights -Adaptable to a wide variety of horns and anvil holders Reduce Down Time -Bronze bushing on flywheel -Enclosed belt and top lever guards -Easy accessibility of all parts for service -Practical parts numbering system for quick, correct replacements -Design and construction assure life-long service Optional Features -Aligning, resting and clamping fixtures -Safety guards to job specifications -Dual palm-buttons and safety probes -Production counters -Compensating spring -Choice of paint color -Pedestal Mounting This listing of riveters is subject to change without notice. This list is not our complete line of units, should you not see specifically what your requirements entail, please contact Chicago Rivet engineering direct to discuss your specific applications. E-Mail sales@chicagorivet.com, or 630-357-8500.
Product Specifications
Specifications Anvil Height
10 1/2 Inch
Specifications Bench Space
20 x 26 Inch
Specifications Drive
Motor
Specifications Flywheel Speed
200 rpm
Specifications Hopper
7 Inch
Specifications Max Tubular Rivet Capacity Diameter
0.156 Inch
Specifications Max Tubular Rivet Capacity Length
5/8 Inch
Specifications Motor
1/4 HP, 1725 rpm
Specifications Mounting Type
Bench
Specifications Net Weight
190 lb
Specifications Overall Height
29 Inch
Specifications Setting
Single Head
Specifications Stroke
3/4 to 2 Inch
Specifications Throat Depth
6 Inch
