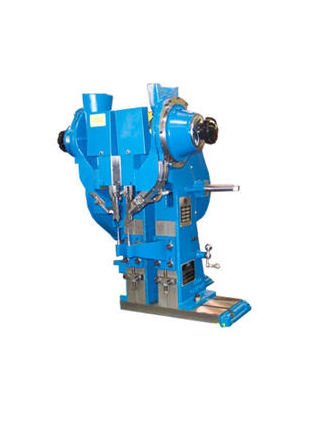

Riveting Machine Model 55
Riveting Machine Model 55
SKU:STA-b53b3a
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Riveting Machine Model 55
$49.99
Quantity: 1
Claim Your Seller Account
Riveting Machine Model 55
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 55 actually consist of two precision machine heads working together with adjustable centers for specific Multiple-Riveting requirements. Set rivets as close as 1/4" or as far as 14-1/2". For small assemblies, novelties, electronic components. The 55 is for bench-mounting . With both, a rivet race lock allows either unit to be used as a single setter.FEATURESIncreased production and greater versatility-Fast machine cycle with solenoid-operated, roller-type clutch.-Quick change feed system for different rivet sizes.-Precision machined pads on heads to locate the horns at various heights.-Adaptable to a wide variety of horns and anvil holders. Reduced Down-time-Bronze bushing on flywheel.-Enclosed belt and top lever guards.-Easy accessibility of all parts for service.-Practical parts numbering system for quick, correct replacements.-Design and construction assure life-long service. Optional Features-Aligning, resting and clamping fixtures.-Safety guards to job specifications.-Dual Palm-Buttons and safety probes.-Production counters.-Compensating Spring.-Choice of paint color.All machines supplied with enclosed belt and top lever guards.This listing of riveters is subject to change without notice. This list is not our complete line of units,should you not see specifically what your requirements entail, please contact Chicago Rivet engineering direct to discuss your specific applications. E-Mail sales@chicagorivet.com, or 630-357-8500.
Product Specifications
Specifications Adjustable Centers
3/8" to 6" Std., 1/4" to 14-1/2" Available
Specifications Anvil Height
13 Inch
Specifications Drive
Motor
Specifications Flywheel Speed
200 rpm
Specifications Hopper
(2) 7 Inch
Specifications Max Tubular Rivet Capacity Diameter
0.125 Inch
Specifications Max Tubular Rivet Capacity Length
9/16 Inch
Specifications Motor
1/4 HP, 1725 rpm
Specifications Mounting Type
Bench
Specifications Net Weight
340 lb
Specifications Overall Height
31 Inch
Specifications Setting
Multi Head
Specifications Stroke
15/16 to 2 Inch
Specifications Throat Depth
6 Inch
