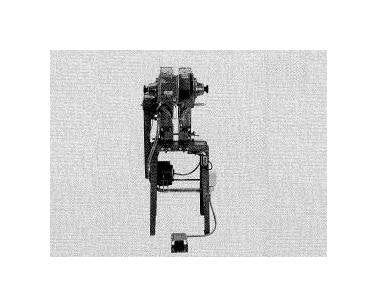

Riveting Machine Model 722
Riveting Machine Model 722
SKU:STA-c8ed21
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Riveting Machine Model 722
$49.99
Quantity: 1
Claim Your Seller Account
Riveting Machine Model 722
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Flexible and versatile...the 722 operates as rapidly as its operator can position the work. One of the heads is fastened permanently, the other can be positioned with a ball crank. Typical applications: automotive industry, brake shoes and heavy hardware. FEATURES Increased Production and Greater Versatility -Fast machine cycle with solenoid-operated, roller-type clutch -Quick change feed system for different rivet sizes -Precision machined pads on heads to locate the horns at various heights -Adaptable to a wide variety of horns and anvil holders Reduce Down Time -Bronze bushing on flywheel -Enclosed belt and top lever guards -Easy accessibility of all parts for service -Practical parts numbering system for quick, correct replacements -Design and construction assure life-long service Optional Features -Aligning, resting and clamping fixtures -Dual palm-buttons and safety probes -Production counters -Compensating spring -Choice of paint color This listing of riveters is subject to change without notice. This list is not our complete line of units, should you not see specifically what your requirements entail, please contact Chicago Rivet engineering direct to discuss your specific applications. E-Mail sales@chicagorivet.com, or 630-357-8500.
Product Specifications
Specifications Adjustable Centers
3/4" to 6 1/2" Std., 5/16" to 18" Available
Specifications Anvil Height
44 Inch
Specifications Drive
Motor
Specifications Floor Space
29 x 27 Inch
Specifications Flywheel Speed
175 rpm
Specifications Hopper
(2) 7" Std., 8" & 10" Available
Specifications Max Tubular Rivet Capacity Diameter
0.188 Inch
Specifications Max Tubular Rivet Capacity Length
5/8 to 1 3/8 Inch
Specifications Motor
1/2 HP, 1140 rpm
Specifications Mounting Type
Floor
Specifications Net Weight
805 lb
Specifications Overall Height
63 Inch
Specifications Setting
Multi Head
Specifications Stroke
1 1/2 to 3 1/4 Inch
Specifications Throat Depth
9 Inch
