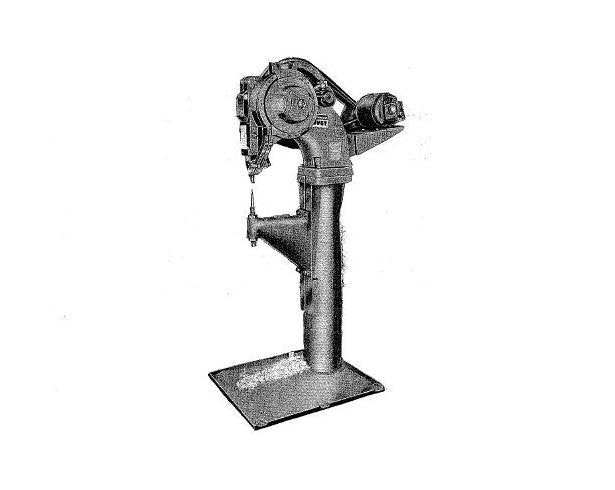

Riveting Machine Model 91
Riveting Machine Model 91
SKU:STA-54229a
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Riveting Machine Model 91
$49.99
Quantity: 1
Claim Your Seller Account
Riveting Machine Model 91
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
For heavier subassemblies... bed and sofa hardware. The 91 uses rivets up to up to 1-3/8" long. Both have steel castings and bronze bushings for strength and longer life.FEATURESIncreased Production and Greater Versatility-Fast machine cycle with solenoid-operated, roller type clutch.-Quick change feed system for different rivet sizes.-Precision machined pads on column to locate the horns at various heights.-Adaptable to a wide variety of horns and anvil holders.Reduced Down-Time-Hardened steel toggle bearings.-Bronze bushing on flywheel.-Enclosed belt and top lever guards.-Easy accessibility of all parts for service.-Practical parts numbering system for quick, correct replacements.-Design and construction assure life-long service. Optional Features-Aligning, resting and clamping fixtures.-Safety guards to job specifications.-Dual palm-buttons and safety probes.-Production counters.-Needle bearing flywheel.-Compensating spring.-Choice of paint color.This listing of riveters is subject to change without notice. This list is not our complete line of units,should you not see specifically what your requirements entail, please contact Chicago Rivet engineering direct to discuss your specific applications. E-Mail sales@chicagorivet.com, or 630-357-8500.
Product Specifications
Specifications Anvil Height
43 1/2 Inch
Specifications Drive
Motor
Specifications Floor Space
25 x 40 Inch
Specifications Flywheel Speed
175 rpm
Specifications Hopper
10 Inch
Specifications Max Tubular Rivet Capacity Diameter
0.313 Inch
Specifications Max Tubular Rivet Capacity Length
1 3/8 Inch
Specifications Motor
1/3 HP, 1140 rpm
Specifications Mounting Type
Floor
Specifications Net Weight
1065 lb
Specifications Overall Height
71 Inch
Specifications Setting
Single Head
Specifications Stroke
2 1/2 to 3 1/4 Inch
Specifications Throat Depth
12 Inch
