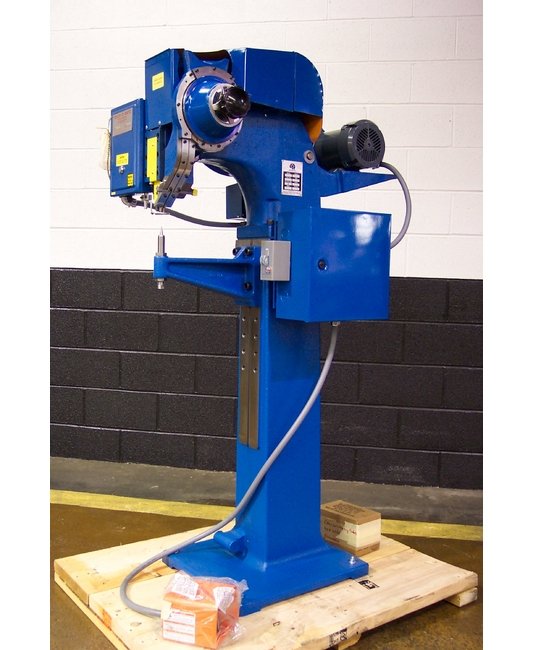

Riveting Machine Model 912
Riveting Machine Model 912
SKU:STA-2a9d12
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Riveting Machine Model 912
$49.99
Quantity: 1
Claim Your Seller Account
Riveting Machine Model 912
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
FEATURES Increased Production and Greater Versatility -Fast machine cycle with solenoid-operated, roller-type clutch -Quick change feed system for different rivet sizes -Precision machined pads on column to locate the horn at various heights -Adaptable to a wide variety of horns and anvil holders Reduce Down Time -Hardened steel toggle bearings -Bronze bushing on flywheel -Enclosed belt and top lever guards -Easy accessibility of all parts for service -Practical parts numbering system for quick, correct replacements -Design and construction assure life-long service Optional Features -Special column and anvil heights -Aligning, resting and clamping fixtures -Dual palm-buttons and safety probes -Production counters -Compensating spring -Choice of paint color SPECIAL FEATURES -The most versatile and most widely used of our machines -Flexible design allows multiple assembly needs -Appliances -Furniture -Automotive requirements This listing of riveters is subject to change without notice. This list is not our complete line of units, should you not see specifically what your requirements entail, please contact Chicago Rivet engineering direct to discuss your specific applications. E-Mail sales@chicagorivet.com, or 630-357-8500.
Product Specifications
Specifications Anvil Height
42 Inch
Specifications Drive
Motor
Specifications Floor Space
18 x 35 Inch
Specifications Flywheel Speed
175 rpm
Specifications Max Tubular Rivet Capacity Diameter
0.188 Inch
Specifications Max Tubular Rivet Capacity Length
15/16 Inch
Specifications Motor
1/3 HP, 1140 rpm
Specifications Mounting Type
Floor
Specifications Net Weight
555 lb
Specifications Overall Height
65 Inch
Specifications Rotary Hopper
7" Std., 8" & 10" Available
Specifications Setting
Single Head
Specifications Stroke
2 1/2 to 2 3/4 Inch
Specifications Throat Depth
12 Inch
