RMT 10-Pallet Multi Server Sheet Loading & Unloading System
RMT 10-Pallet Multi Server Sheet Loading & Unloading System
Enhance industrial productivity with the RMT 10-Pallet Multi Server Sheet Loading & Unloading System. Unmatched efficiency & precision.
Regular price
$55,000.00
Regular price
Sale price
$55,000.00
Unit price
per
Initiate Order
RMT 10-Pallet Multi Server Sheet Loading & Unloading System
$55,000.00
Quantity: 1
Claim Your Seller Account
RMT 10-Pallet Multi Server Sheet Loading & Unloading System
$55,000.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

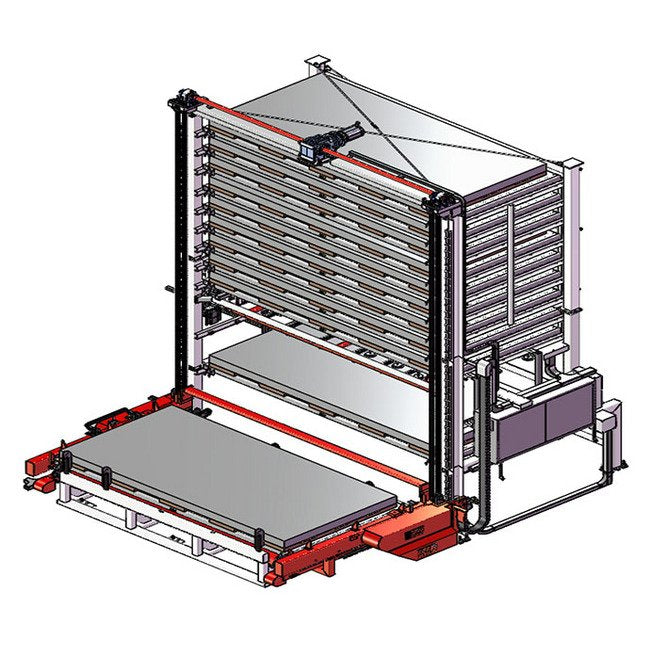

The RMT 10-Pallet Multi Server 613 Full Automatic Sheet Loading and Unloading System is a sophisticated solution designed for seamless operation in industrial settings. Featuring an automatic separation system, thickness measuring control, and advanced safety mechanisms like Z axis fall protection, this system ensures efficient and reliable unmanned operation. With a total system weight of 33,583 lb and the capability to hold up to 10 pallets with each load supporting 6610 pounds, this system offers unparalleled productivity and precision. The inclusion of features such as a Siemens controller, touch screen interface, and customizable pallet configurations further enhances its usability and adaptability to various production needs.
Product Specifications
Additional Information
Fixed fencing system and photocell protectionMagnetic Stripper: Supports the suction cups handler when separating metal sheetsAir Jet Blower: Separates the metal sheet to prevent them from adhering togetherSheets Pneumatic Stripper: Moves independently up and down to separate the metal sheetsSiemens brand controller supports up to 28 material codes in the systemOpen system for the robot configuration5-7 inch touch screen with keypad (system can be run with touch screen or keypad)Minimum of three pallets for the stock area and can be customized up to 15 pallets with each load holding 6610 pounds.
Specifications Electric Voltage
460 V
Specifications Electric Voltage Tolerance
10 %
Specifications Frequency
60 Hz
Specifications Frequency Tolerance
10 %
Specifications Maximum Current Absorption
32 A

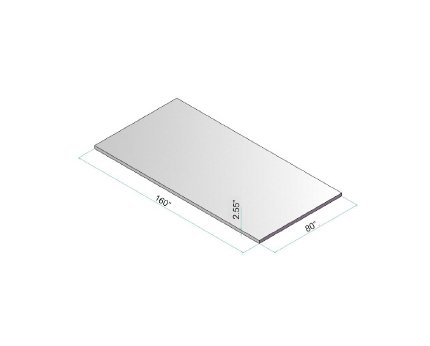

Specifications Maximum Dimension
160 x 80 x 0.75 in
Specifications Maximum Height Stack Of Sheet
2.55 in
Specifications Maximum Power Absorption
24 hp
Specifications Maximum Power Absorption Tolerance
10 %
Specifications Maximum Weight Stack
8818 lb
Specifications Minimum Dimension
40 x 40 x 0.020 in
Specifications Number Of Pallets
10
Specifications Overall Dimensions
253 × 221 in
Specifications Overall Height H
204 in
Specifications Phase
3
Specifications Short Circuit Current
10 kA
Specifications Total System Weight
33,583 lb
