RMT 3 Pallets Multi Server 613 Full Automatic Sheet Loading System
RMT 3 Pallets Multi Server 613 Full Automatic Sheet Loading System
Enhance metal processing efficiency with the RMT 3 Pallets Multi Server 613 Automatic Sheet Loading System. High-capacity, user-friendly, and safety-focused.
Regular price
$59,999.00
Regular price
Sale price
$59,999.00
Unit price
per
Initiate Order
RMT 3 Pallets Multi Server 613 Full Automatic Sheet Loading System
$59,999.00
Quantity: 1
Claim Your Seller Account
RMT 3 Pallets Multi Server 613 Full Automatic Sheet Loading System
$59,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

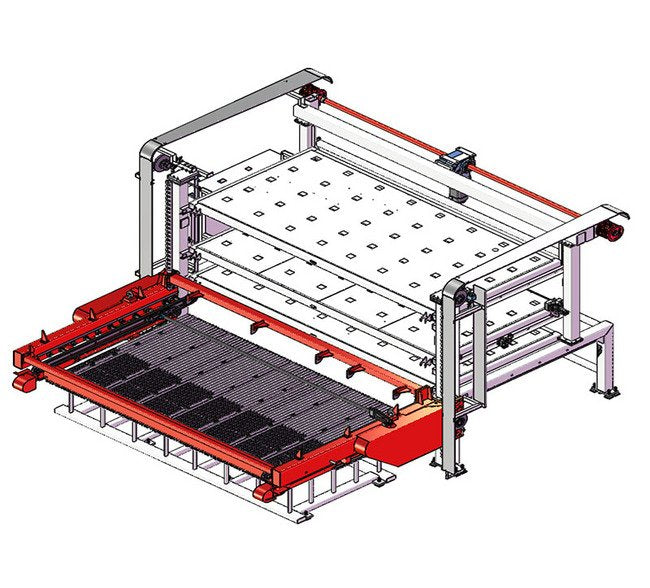

The RMT 3 Pallets Multi Server 613 Full Automatic Sheet Loading System is a cutting-edge solution for efficient sheet metal processing. Equipped with advanced features such as automatic sheet separation, thickness measuring control, and Z axis fall safety device, this system ensures precise and reliable operation even during unmanned tasks. The system boasts a Siemens brand controller supporting up to 28 material codes, an open system for easy robot configuration, and a user-friendly touch screen interface. With a maximum weight capacity of 8818 lb per stack, customizable pallet options, and additional safety measures like fixed fencing system and photocell protection, this system is designed to enhance productivity and safety in industrial settings.
Product Specifications
Additional Information
Fixed fencing system and photocell protectionMagnetic Stripper: Supports the suction cups handler when separating metal sheetsAir Jet Blower: Separates the metal sheet to prevent them from adhering togetherSheets Pneumatic Stripper: Moves independently up and down to separate the metal sheetsSiemens brand controller supports up to 28 material codes in the systemOpen system for the robot configuration5-7 inch touch screen with keypad (system can be run with touch screen or keypad)Minimum of three pallets for the stock area and can be customized up to 15 pallets with each load holding 6610 pounds.
Specifications Electric Voltage
460 V
Specifications Frequency
60 Hz
Specifications Frequency Tolerance
10 %
Specifications Maximum Current Absorption
32 A

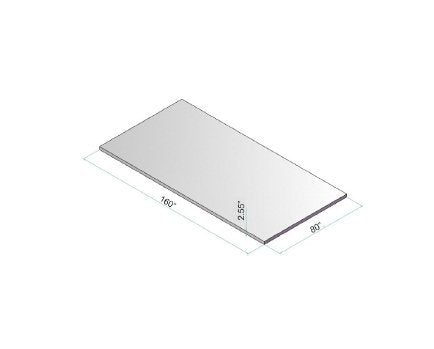

Specifications Maximum Dimension
160 x 80 x 0.75 in
Specifications Maximum Height Stack Of Sheet
2.55 in
Specifications Maximum Power Absorption
24 hp
Specifications Maximum Power Absorption Tolerance
10 %
Specifications Maximum Weight Stack
8818 lb
Specifications Minimum Dimension
40 x 40 x 0.020 in
Specifications Number Of Pallets
3
Specifications Overall Dimensions
253 × 221 in
Specifications Overall Height H
141 in
Specifications Phase
3
Specifications Short Circuit Current
10 kA
Specifications Total System Weight
21,248 lb
