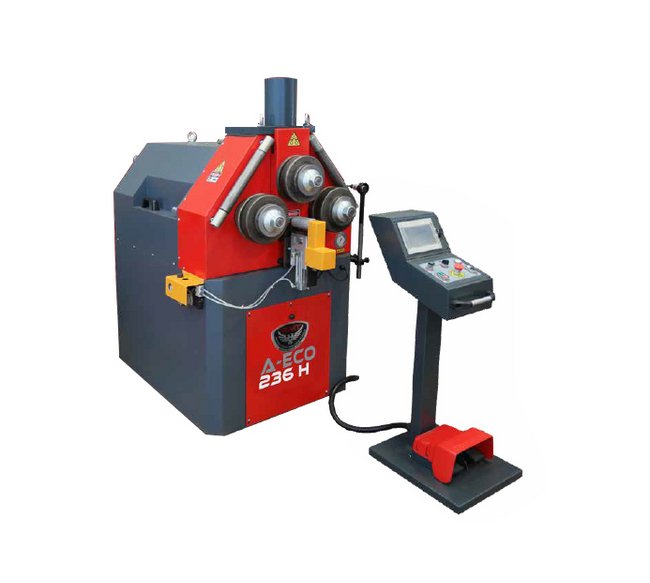

RMT A-ECO 2.36 in Motorized Angle Roll Bending Machine
RMT A-ECO 2.36 in Motorized Angle Roll Bending Machine
SKU:REV-3a0cf5
Achieve precision bending with the RMT A-ECO 2.36" Motorized Angle Roll Machine, ideal for industrial applications.
Regular price
$7,999.99
Regular price
Sale price
$7,999.99
Unit price
per
Initiate Order
RMT A-ECO 2.36 in Motorized Angle Roll Bending Machine
$7,999.99
Quantity: 1
Claim Your Seller Account
RMT A-ECO 2.36 in Motorized Angle Roll Bending Machine
$7,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The RMT A-ECO Series 2.36 Inch Shaft Diameter Motorized Angle Roll Bending Machine is a powerhouse for precision bending. With a top shaft diameter range of 1.18" to 2.36", it can handle up to 3" SCH 40 Pipe Bending Capacity. This industrial-grade machine features a 2 hp motor, hardened shafts, and hydraulic controls for accurate bending. Equipped with standard and optional features like mobile control panel, steel welded construction frame, and various bending roll options, this machine excels in ornamental applications and heavy-duty production requirements. RMT's reputation for quality and reliability makes this angle roll an ideal choice for manufacturing facilities and workshops seeking durability and precision.
Product Specifications
Angle Leg In Angle Leg In Dimension
2-3/4 x 2-3/4 x 1/4 in
Angle Leg In Angle Leg In Minimum Internal Diameter
48 in
Angle Leg In Angle Leg In Note
Standard RollsSpecial RollsSpecial Support Rolls
Angle Leg Out Angle Leg Out Dimension
2-3/4 x 2-3/4 x 1/4 in
Angle Leg Out Angle Leg Out Minimum Internal Diameter
40 in
Angle Leg Out Angle Leg Out Note
Standard RollsSpecial Rolls
Benefits
For Ornamental Applications RMT angle rolls can be equipped with optional scroll bending tools, picket twisting tools and helical stair rail attachments. If you are considering buying a Manual Bender or Hydraulic Bender or CNC Pipe Bender or Tube Roll or any type of Roll Bender, RMT can satisfy your production requirements. Our angle rolls are available in all sizes from small economical portable benders to large heavy duty pipe benders that will fit your rolling budget.RMT's service department employs factory trained experienced professionals to service your spare parts, repair and technical needs. We stock tooling and spare parts. Our CNC machine shop can build any custom tooling you need with a rapid turn-around. We manufacture tooling for other brands of Ring Rollers and Roll Bending Machines. For high volume roll bending or multi-radius parts, our optional CNC Angle Rolls with direct radius input let you roll up to the next level with the highest precision, repeatability and speed. Our high quality OEM components are non-proprietary and available worldwide. Main frames carry a 10 year warranty! We are confident in RMT superior quality. Regardless of your need and budget for a roll bender, you will benefit from choosing RMT. Our true quality and integrity is in the "details" of every RMT roll bender. Compare and see for yourself why RMT Bending Machines have become on of the most respected brand names in the roll bending industry. Come visit us to see our machines first hand and experience the RMT difference!
C Section Leg In C Section Leg In Dimension
4 in
C Section Leg In C Section Leg In Minimum Internal Diameter
46 in
C Section Leg In C Section Leg In Note
Standard RollsSpecial Rolls
C Section Leg Out C Section Leg Out Dimension
4 in
C Section Leg Out C Section Leg Out Minimum Internal Diameter
30 in
C Section Leg Out C Section Leg Out Note
Standard RollsSpecial Rolls
Dimensions Height
65 in
Dimensions Length
40 in
Dimensions Width
56 in
Flat Along Edge Flat Along Edge Dimension
3 x 3/4 in
Flat Along Edge Flat Along Edge Minimum Internal Diameter
47 in
Flat Along Edge Flat Along Edge Note
Standard Rolls
Note
Capacity based on mild steelSpecial Tools
Schedule 40 Pipe Note For Schedule 40 Pipe Minimum Internal Diam
Can be changed according to deformation
Schedule 40 Pipe Schedule 40 Pipe Minimum Internal Diameter
20 in | 63 in
Solid Rectangle Solid Rectangle Minimum Internal Diameter
24 in
Solid Round Solid Round Diameter
2 in
Solid Round Solid Round Minimum Internal Diameter
32 in
Solid Square Solid Square Minimum Internal Diameter
16 in | 32 in
Specifications Motor Power
2 hp
Specifications Roll Diameter
8.46 in
Specifications Shaft Diameter
2.36 in
Tubing Rectangle Note For Tubing Rectangle Minimum Internal Diam
Can be changed according to deformation
Tubing Rectangle Tubing Rectangle Minimum Internal Diameter
56 in
Tubing Round Note For Tubing Round Minimum Internal Diameter
Can be changed according to deformation
Tubing Round Tubing Round Diameter
2 x 0.080 in | 4 x 0.080 in
Tubing Round Tubing Round Minimum Internal Diameter
20 in | 63 in
Tubing Square Note For Tubing Square Minimum Internal Diameter
Can be changed according to deformation
Tubing Square Tubing Square Minimum Internal Diameter
63 in
T Section Leg Down T Section Leg Down Minimum Internal Diameter
40 in
T Section Leg In T Section Leg In Minimum Internal Diameter
48 in
T Section Leg Out T Section Leg Out Minimum Internal Diameter
40 in
