RMT A-FAB 10 HP Hydraulic Angle Roll Bending Machine
RMT A-FAB 10 HP Hydraulic Angle Roll Bending Machine
SKU:REV-0da96c
Achieve precision bending with the RMT A-FAB 10 HP Hydraulic Angle Roll. Durable, efficient, and versatile for industrial applications.
Regular price
$25,999.00
Regular price
Sale price
$25,999.00
Unit price
per
Initiate Order
RMT A-FAB 10 HP Hydraulic Angle Roll Bending Machine
$25,999.00
Quantity: 1
Claim Your Seller Account
RMT A-FAB 10 HP Hydraulic Angle Roll Bending Machine
$25,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

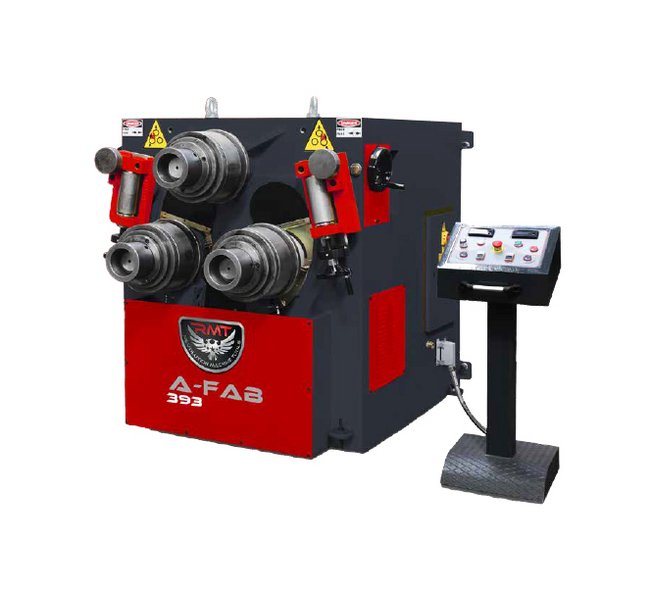

The RMT A-FAB 10 HP Hydraulic Angle Roll Bending Machine is a robust industrial solution designed for precision bending of a wide range of materials. With a 10 HP motor power and the ability to handle up to 8" SCH 40 Pipe Bending Capacity, this machine offers exceptional performance and efficiency. Its solid steel construction, hardened and ground shafts, and 3 powered rolls ensure durability and accuracy. Equipped with standard features like hardened standard rolls, 3-axis mechanical lateral angle guide rolls, and digital read-outs, this machine is suitable for various applications. Optional features such as hydraulic lateral guide rolls and NC control enhance versatility. RMT's commitment to quality and customer satisfaction is evident in the craftsmanship and reliability of this angle roll bending machine.
Product Specifications
Angle Leg In Angle Leg In Dimension
4 x 4 x 3/8 in
Angle Leg In Angle Leg In Minimum Internal Diameter
40 in
Angle Leg In Angle Leg In Note
Standard RollsSpecial Rolls
Angle Leg Out Angle Leg Out Dimension
4 x 4 x 1/2 in
Angle Leg Out Angle Leg Out Minimum Internal Diameter
40 in
Angle Leg Out Angle Leg Out Note
Standard RollsSpecial Rolls
Benefits
For Ornamental Applications RMT angle rolls can be equipped with optional scroll bending tools, picket twisting tools and helical stair rail attachments. If you are considering buying a Manual Bender or Hydraulic Bender or CNC Pipe Bender or Tube Roll or any type of Roll Bender, RMT can satisfy your production requirements. Our angle rolls are available in all sizes from small economical portable benders to large heavy duty pipe benders that will fit your rolling budget.RMT's service department employs factory trained experienced professionals to service your spare parts, repair and technical needs. We stock tooling and spare parts. Our CNC machine shop can build any custom tooling you need with a rapid turn-around. We manufacture tooling for other brands of Ring Rollers and Roll Bending Machines. For high volume roll bending or multi-radius parts, our optional CNC Angle Rolls with direct radius input let you roll up to the next level with the highest precision, repeatability and speed. Our high quality OEM components are non-proprietary and available worldwide. Main frames carry a 10 year warranty! We are confident in RMT superior quality. Regardless of your need and budget for a roll bender, you will benefit from choosing RMT. Our true quality and integrity is in the "details" of every RMT roll bender. Compare and see for yourself why RMT Bending Machines have become on of the most respected brand names in the roll bending industry. Come visit us to see our machines first hand and experience the RMT difference!
C Section Leg In C Section Leg In Dimension
C7-9.8
C Section Leg In C Section Leg In Minimum Internal Diameter
40 in
C Section Leg In C Section Leg In Note
Standard RollsSpecial Rolls
C Section Leg Out C Section Leg Out Dimension
C7-9.8
C Section Leg Out C Section Leg Out Minimum Internal Diameter
36 in
C Section Leg Out C Section Leg Out Note
Standard RollsSpecial Rolls
Dimensions Height
67 in
Dimensions Length
79 in
Dimensions Width
58 in
Flat Along Edge Flat Along Edge Minimum Internal Diameter
32 in
H Section Easy Way H Section Easy Way Minimum Internal Diameter
48 in
I Section Easy Way I Section Easy Way Minimum Internal Diameter
42 in
Schedule 40 Pipe Note For Schedule 40 Pipe Minimum Internal Diam
Can be changed according to deformation
Schedule 40 Pipe Schedule 40 Pipe Minimum Internal Diameter
18 in | 40 in
Solid Rectangle Solid Rectangle Minimum Internal Diameter
50 in
Solid Round Solid Round Diameter
3 in
Solid Round Solid Round Minimum Internal Diameter
32 in
Solid Square Solid Square Minimum Internal Diameter
16 in | 30 in
Specifications Motor Power
10 hp
Specifications Power Source
Hydraulic
Specifications Roll Diameter
12.4 in
Specifications Shaft Diameter
3.93 in
Tubing Rectangle Note For Tubing Rectangle Minimum Internal Diam
Can be changed according to deformation
Tubing Rectangle Tubing Rectangle Minimum Internal Diameter
52 in
Tubing Round Note For Tubing Round Minimum Internal Diameter
Can be changed according to deformation
Tubing Round Tubing Round Diameter
5 x 0.100 in | 5/8 x 0.040 in
Tubing Round Tubing Round Minimum Internal Diameter
18 in | 56 in
Tubing Square Note For Tubing Square Minimum Internal Diameter
Can be changed according to deformation
Tubing Square Tubing Square Minimum Internal Diameter
60 in
T Section Leg Down T Section Leg Down Minimum Internal Diameter
40 in
T Section Leg In T Section Leg In Minimum Internal Diameter
40 in
T Section Leg Out T Section Leg Out Minimum Internal Diameter
40 in
