RMT A-FAB 40HP Hydraulic Angle Roll Bending Machine
RMT A-FAB 40HP Hydraulic Angle Roll Bending Machine
SKU:REV-6e595f
Achieve precision bending with the RMT A-FAB 40HP Hydraulic Angle Roll Machine. Ideal for various materials and applications.
Regular price
$56,999.00
Regular price
Sale price
$56,999.00
Unit price
per
Initiate Order
RMT A-FAB 40HP Hydraulic Angle Roll Bending Machine
$56,999.00
Quantity: 1
Claim Your Seller Account
RMT A-FAB 40HP Hydraulic Angle Roll Bending Machine
$56,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

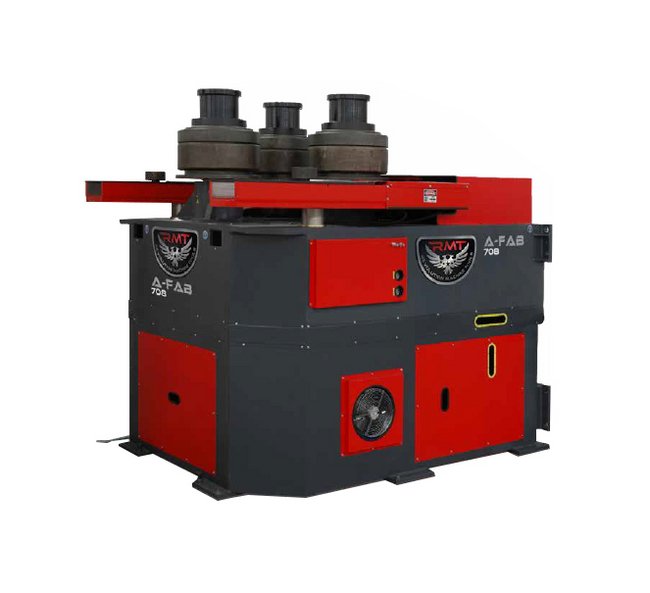

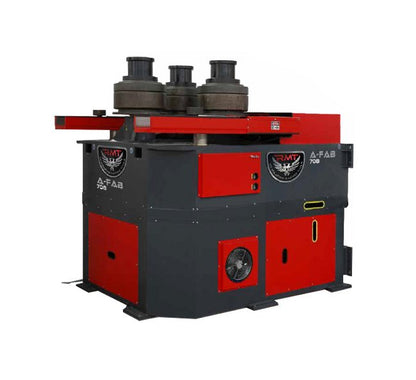

The RMT A-FAB Series 40HP Hydraulic Angle Roll Bending Machine is a versatile solution designed for high-performance metal fabrication. With a powerful 40 hp motor, this machine provides exceptional precision for bending various materials including solid square, tubing, and schedule 40 pipes. Equipped with steel construction, hardened shafts, and hydraulic lateral angle guide rolls, it ensures reliable and efficient operation. Ideal for ornamental applications, the machine offers optional tools for scroll bending and picket twisting. Backed by RMT's renowned quality and service, this hydraulic angle roll bending machine is a top choice for meeting industrial rolling needs.
Product Specifications
Angle Leg In Angle Leg In Dimension
7 x 7 x 5/8 in
Angle Leg In Angle Leg In Minimum Internal Diameter
100 in
Angle Leg In Angle Leg In Note
Standard RollsSpecial Rolls
Angle Leg Out Angle Leg Out Dimension
7 x 7 x 3/4 in
Angle Leg Out Angle Leg Out Minimum Internal Diameter
80 in
Angle Leg Out Angle Leg Out Note
Standard RollsSpecial Rolls
Benefits
For Ornamental Applications RMT angle rolls can be equipped with optional scroll bending tools, picket twisting tools and helical stair rail attachments. If you are considering buying a Manual Bender or Hydraulic Bender or CNC Pipe Bender or Tube Roll or any type of Roll Bender, RMT can satisfy your production requirements. Our angle rolls are available in all sizes from small economical portable benders to large heavy duty pipe benders that will fit your rolling budget.RMT's service department employs factory trained experienced professionals to service your spare parts, repair and technical needs. We stock tooling and spare parts. Our CNC machine shop can build any custom tooling you need with a rapid turn-around. We manufacture tooling for other brands of Ring Rollers and Roll Bending Machines. For high volume roll bending or multi-radius parts, our optional CNC Angle Rolls with direct radius input let you roll up to the next level with the highest precision, repeatability and speed. Our high quality OEM components are non-proprietary and available worldwide. Main frames carry a 10 year warranty! We are confident in RMT superior quality. Regardless of your need and budget for a roll bender, you will benefit from choosing RMT. Our true quality and integrity is in the "details" of every RMT roll bender. Compare and see for yourself why RMT Bending Machines have become on of the most respected brand names in the roll bending industry. Come visit us to see our machines first hand and experience the RMT difference!
C Section Hard Way C Section Hard Way Dimension
C9-20#
C Section Hard Way C Section Hard Way Minimum Internal Diameter
315 in
C Section Leg In C Section Leg In Minimum Internal Diameter
90 in
C Section Leg Out C Section Leg Out Minimum Internal Diameter
72 in
Dimensions Height
199 in
Dimensions Length
103 in
Dimensions Width
95 in
Flat Along Edge Flat Along Edge Minimum Internal Diameter
80 in
H Section Easy Way H Section Easy Way Minimum Internal Diameter
100 in
H Section Hard Way H Section Hard Way Minimum Internal Diameter
160 in
I Section Easy Way I Section Easy Way Minimum Internal Diameter
110 in
I Section Hard Way I Section Hard Way Minimum Internal Diameter
180 in
Schedule 40 Pipe Note For Schedule 40 Pipe Minimum Internal Diam
Can be changed according to deformation
Schedule 40 Pipe Schedule 40 Pipe Minimum Internal Diameter
40 in | 160 in
Solid Rectangle Solid Rectangle Minimum Internal Diameter
72 in
Solid Round Solid Round Diameter
4-3/8 in
Solid Round Solid Round Minimum Internal Diameter
62 in
Solid Square Solid Square Minimum Internal Diameter
40 in | 72 in
Specifications Motor Power
40 hp
Specifications Power Source
Hydraulic
Specifications Roll Diameter
22.83 in
Specifications Shaft Diameter
7.08 in
Tubing Rectangle Note For Tubing Rectangle Minimum Internal Diam
Can be changed according to deformation
Tubing Rectangle Tubing Rectangle Minimum Internal Diameter
210 in
Tubing Round Note For Tubing Round Minimum Internal Diameter
Can be changed according to deformation
Tubing Round Tubing Round Diameter
2-1/2 x 0.080 in | 8 x 0.200 in
Tubing Round Tubing Round Minimum Internal Diameter
30 in | 315 in
Tubing Square Note For Tubing Square Minimum Internal Diameter
Can be changed according to deformation
Tubing Square Tubing Square Minimum Internal Diameter
178 in
T Section Leg Down T Section Leg Down Minimum Internal Diameter
80 in
T Section Leg In T Section Leg In Minimum Internal Diameter
105 in
T Section Leg Out T Section Leg Out Minimum Internal Diameter
80 in
