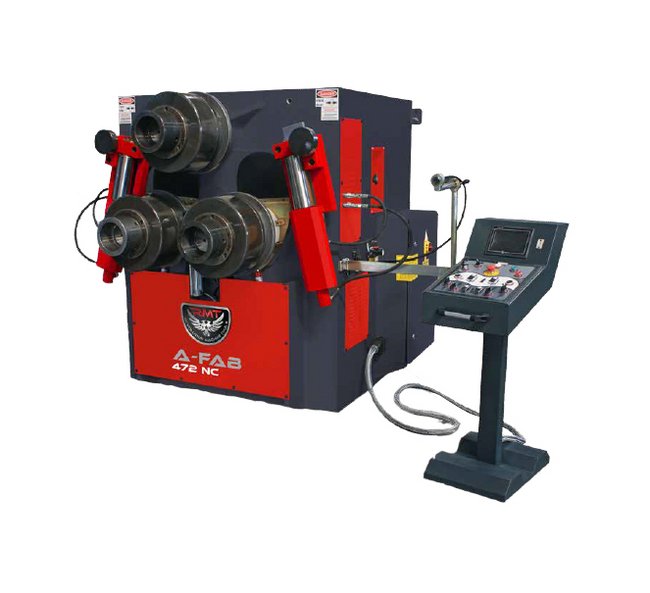

RMT A-FAB Series 20HP Hydraulic Angle Roll Bending Machine
RMT A-FAB Series 20HP Hydraulic Angle Roll Bending Machine
SKU:REV-740724
Achieve precision bending with the powerful RMT A-FAB 20HP Hydraulic Angle Roll Machine, built for durability and accuracy.
Regular price
$33,999.99
Regular price
Sale price
$33,999.99
Unit price
per
Initiate Order
RMT A-FAB Series 20HP Hydraulic Angle Roll Bending Machine
$33,999.99
Quantity: 1
Claim Your Seller Account
RMT A-FAB Series 20HP Hydraulic Angle Roll Bending Machine
$33,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The RMT A-FAB Series 20HP Hydraulic Angle Roll Bending Machine is a robust and versatile industrial solution designed for precise bending operations. Powered by a 20 horsepower motor, this machine offers exceptional performance with a maximum turning speed of 24 ft/min. With top-notch features such as hardened and ground shafts, hydraulic lateral angle guide rolls, and digital read-outs, it ensures efficient and accurate bending for a wide range of materials, including tubes, pipes, angles, and more. RMT's commitment to quality craftsmanship is evident in the steel construction, 10-year warranty on main frames, and optional CNC Angle Rolls for advanced precision.
Product Specifications
Angle Leg In Angle Leg In Dimension
4 x 4 x 3/8 in
Angle Leg In Angle Leg In Minimum Internal Diameter
48 in
Angle Leg In Angle Leg In Note
Standard RollsSpecial Rolls
Angle Leg Out Angle Leg Out Dimension
5 x 5 x 1/2 in
Angle Leg Out Angle Leg Out Minimum Internal Diameter
52 in
Angle Leg Out Angle Leg Out Note
Standard RollsSpecial Rolls
C Section Hard Way C Section Hard Way Minimum Internal Diameter
200 in
C Section Leg In C Section Leg In Minimum Internal Diameter
48 in
C Section Leg Out C Section Leg Out Minimum Internal Diameter
40 in
Dimensions Height
75 in
Dimensions Length
79 in
Dimensions Width
65 in
Flat Along Edge Flat Along Edge Minimum Internal Diameter
48 in
H Section Easy Way H Section Easy Way Minimum Internal Diameter
48 in
H Section Hard Way H Section Hard Way Minimum Internal Diameter
63 in
I Section Easy Way I Section Easy Way Minimum Internal Diameter
40 in
I Section Hard Way I Section Hard Way Minimum Internal Diameter
200 in
Schedule 40 Pipe Note For Schedule 40 Pipe Minimum Internal Diam
Can be changed according to deformation
Schedule 40 Pipe Schedule 40 Pipe Minimum Internal Diameter
20 in | 60 in
Solid Rectangle Solid Rectangle Minimum Internal Diameter
40 in
Solid Round Solid Round Diameter
3 in
Solid Round Solid Round Minimum Internal Diameter
30 in
Solid Square Solid Square Minimum Internal Diameter
20 in | 30 in
Specifications Bottom Shaft Diameter
2.75 in
Specifications Motor Power
20 hp
Specifications Power Source
Hydraulic
Specifications Roll Diameter
15.35 in
Specifications Shaft Diameter
4.72 in
Specifications Top Shaft Diameter
3.14 in
Tubing Rectangle Note For Tubing Rectangle Minimum Internal Diam
Can be changed according to deformation
Tubing Rectangle Tubing Rectangle Minimum Internal Diameter
71 in
Tubing Round Note For Tubing Round Minimum Internal Diameter
Can be changed according to deformation
Tubing Round Tubing Round Diameter
2 x 0.080 in | 6 x 0.160 in
Tubing Round Tubing Round Minimum Internal Diameter
20 in | 111 in
Tubing Square Note For Tubing Square Minimum Internal Diameter
Can be changed according to deformation
Tubing Square Tubing Square Minimum Internal Diameter
71 in
T Section Leg Down T Section Leg Down Minimum Internal Diameter
32 in
T Section Leg In T Section Leg In Minimum Internal Diameter
40 in
T Section Leg Out T Section Leg Out Minimum Internal Diameter
32 in
